Power Transmission > Miscellaneous Items > Splined Hubs With Flange

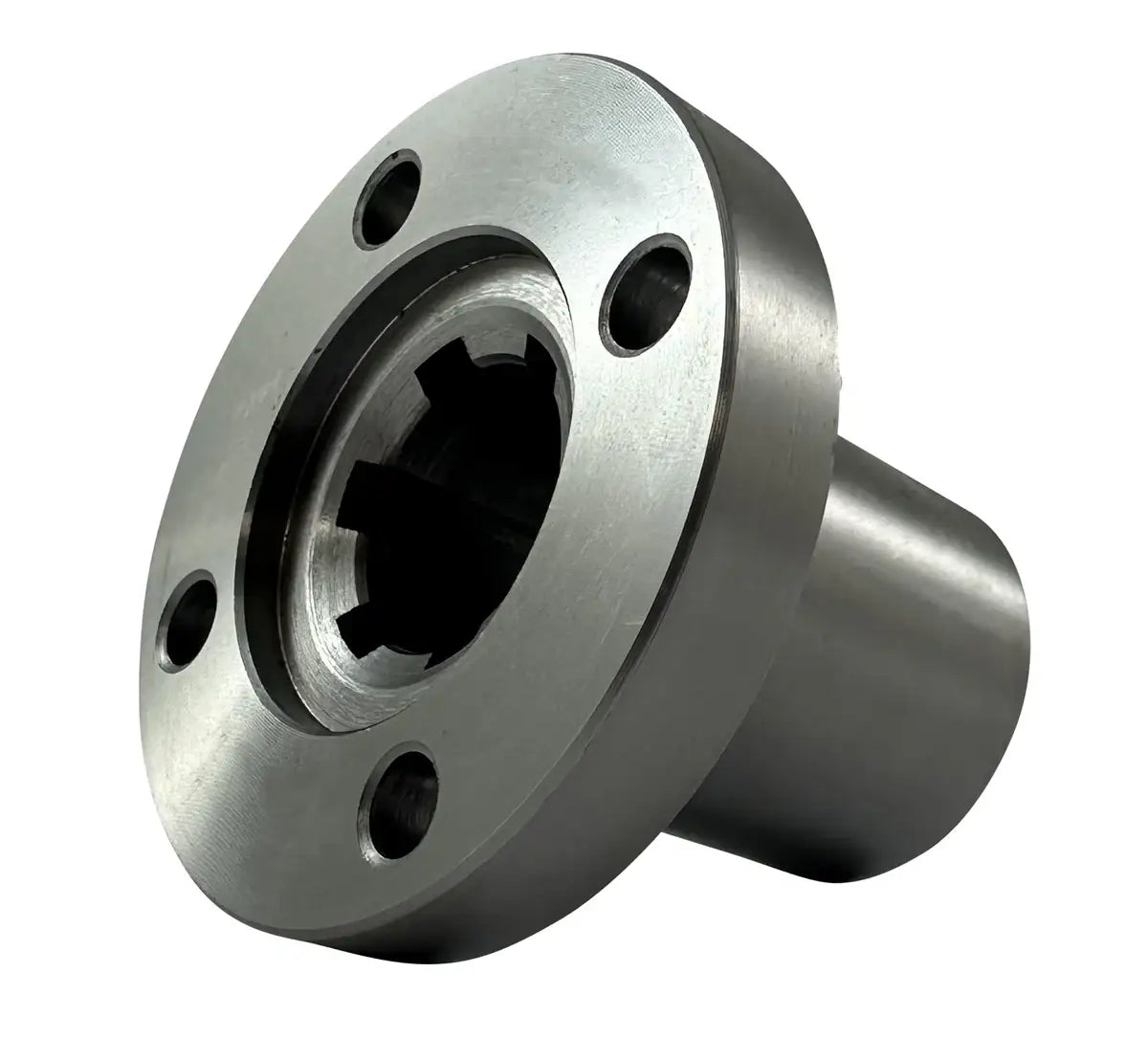

Splined Hub With Flange for 38mm Shaft With 8 Splines - C45 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64850800-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 38mm Shaft With 8 Splines - C45 Material Features
Splined Hub With Flange for 38mm Shaft With 8 Splines - C45 Material Specifications
This high-grade splined hub with a flange is tailored for a 38mm shaft with 8 splines and is constructed from strong C45 steel. It complies with ISO DIN 14 standards, ensuring effortless interchangeability. Flanged splined hubs are critical for precise torque transmission in a variety of applications. Designed for a 38mm diameter shaft with 8 splines, this hub is easy to install and provides reliable, long-term performance. We also supply splined clamp collars with four pre-drilled holes to accompany this hub. For further details or to request a quote on our top-quality splined hub with flange for a 38mm shaft with 8 splines, please reach out to our customer service team, who will be pleased to assist you!
38mm With 8 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 38mm
- Profile Description: KN32x38
- Material: C45
- Part #: 64850800
- Dimension (A): 82mm
- Dimension (B): 65mm
- Dimension (B1): 9.0mm
- Dimension (C): 50mm
- Dimension (F): 50mm
- Dimension (d): 32mm
- Dimension (E): 12mm
- Dimension (h): 3.5mm
- Dimension (L): 60mm
- Weight: 0.72 KG
- Made for Shaft Diameter: 38mm
- Profile Description: KN32x38
- Material: C45
- Part #: 64850800
- Dimension (A): 82mm
- Dimension (B): 65mm
- Dimension (B1): 9.0mm
- Dimension (C): 50mm
- Dimension (F): 50mm
- Dimension (d): 32mm
- Dimension (E): 12mm
- Dimension (h): 3.5mm
- Dimension (L): 60mm
- Weight: 0.72 KG
