Power Transmission > Shafting > Precision Metric Spline Shaft ISO DIN 14 Standards

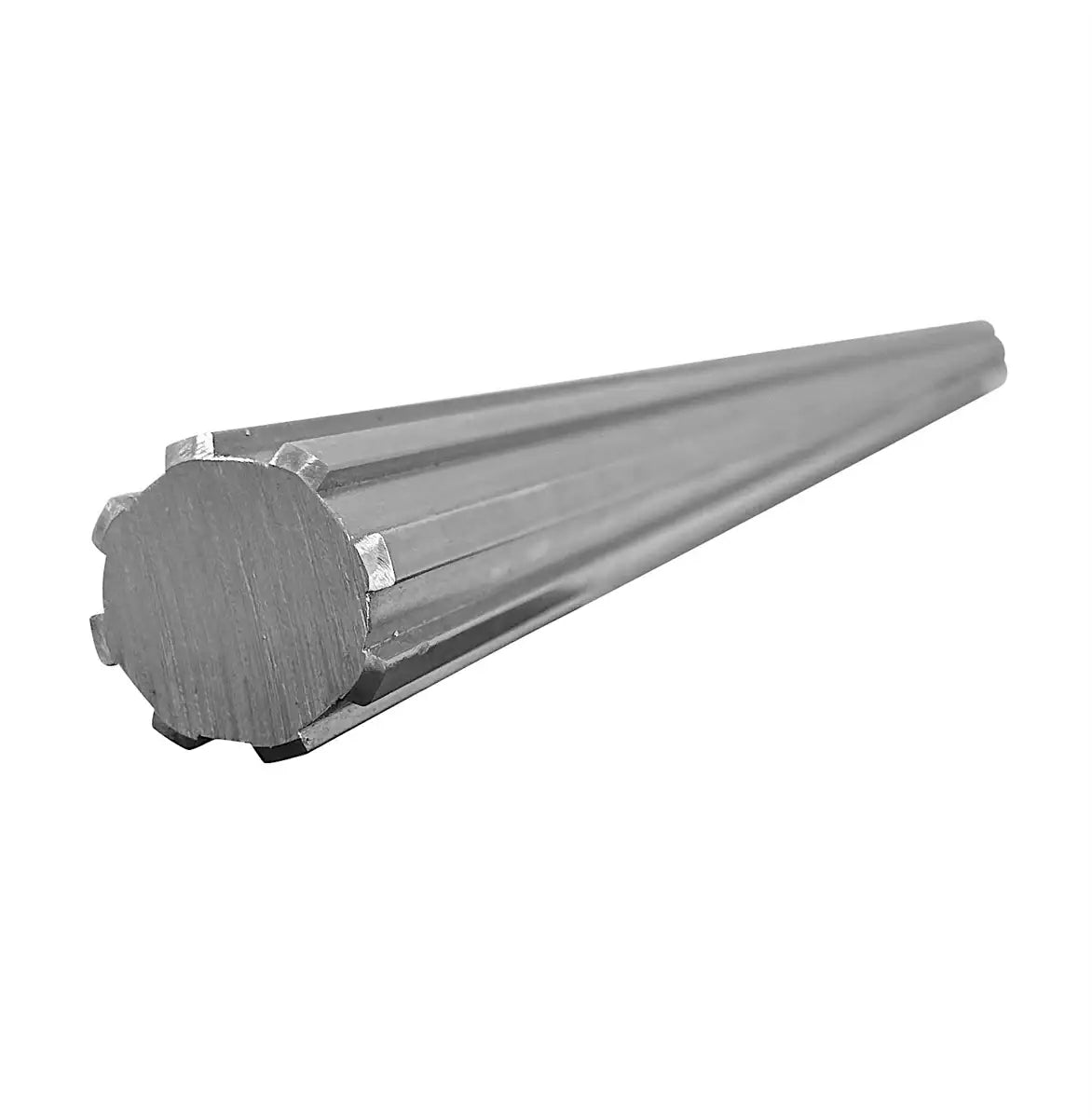

38mm Spline Shaft 8-Splines C45 Material - 3000mm
Note:
Custom Cut to Length Chain Also Available
SKU: 64847800-SHAFT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
38mm Spline Shaft 8-Splines C45 Material - 3000mm Features
38mm Spline Shaft 8-Splines C45 Material - 3000mm Specifications
Our durable 38mm spline shaft with 8 splines is manufactured from high-grade C45 steel and comes pre-cut to a length of 3000mm. Engineered to meet DIN ISO 14 Standards, this 38mm shaft is designed for superior torque transmission and alignment, making it a perfect fit for agricultural equipment, industrial machinery, and drive shafts. Additionally, we provide matching components, such as spline hubs, collars, and clamps, for a complete solution. For additional information or a quote on our precision C45 steel 38mm spline shaft with 8 splines in a 3000mm length, contact our customer service team, and we will gladly assist you!
38mm Spline Shaft With 8-Splines Dimensions
- Shaft Diameter (D): 38mm
- Amount of Splines: 8
- Dimension (d): 32mm
- Dimension (b): 6mm
- Length: 3000mm
- Material: C45
- Weight: 7.433 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
- Shaft Diameter (D): 38mm
- Amount of Splines: 8
- Dimension (d): 32mm
- Dimension (b): 6mm
- Length: 3000mm
- Material: C45
- Weight: 7.433 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
