Power Transmission > Miscellaneous Items > Splined Hubs With Flange

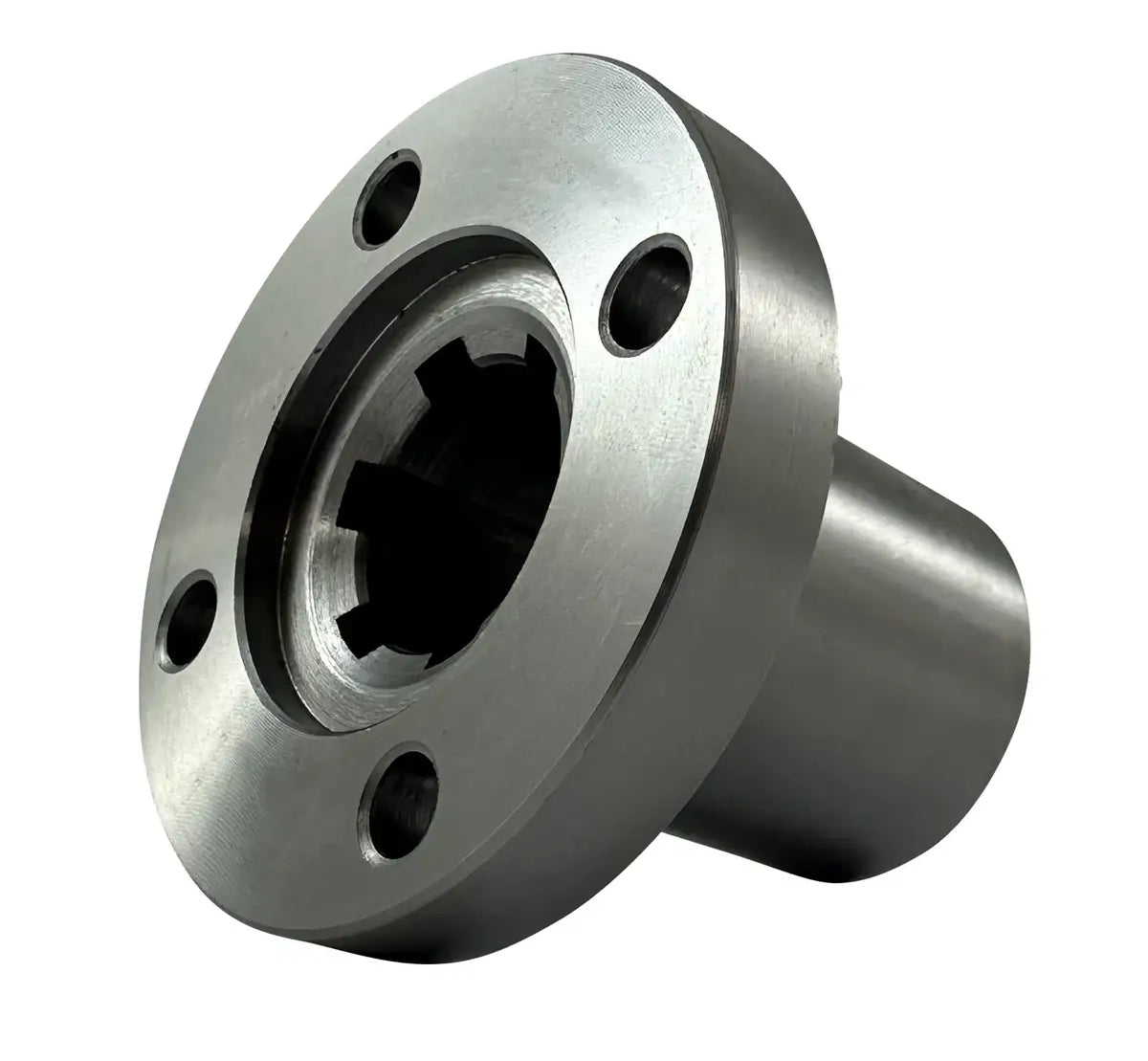

Splined Hub With Flange for 48mm Shaft With 8 Splines - C45 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64851000-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 48mm Shaft With 8 Splines - C45 Material Features
Splined Hub With Flange for 48mm Shaft With 8 Splines - C45 Material Specifications
This high-quality splined hub with a flange is designed for a 48mm shaft with 8 splines, made from robust C45 steel. It adheres to ISO DIN 14 standards, ensuring easy interchangeability. Flanged splined hubs are essential for precise torque transmission in a variety of applications. Crafted for a 48mm diameter shaft with 8 splines, this hub is simple to install and offers reliable, long-lasting performance. We also provide splined clamp collars with four pre-drilled holes to accompany this hub. For additional information or to request a quote on our superior splined hub with flange for a 48mm shaft with 8 splines, please reach out to our customer service team, who will be delighted to assist you!
48mm With 8 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 48mm
- Profile Description: KN42x48
- Material: C45
- Part #: 64851000
- Dimension (A): 95mm
- Dimension (B): 75mm
- Dimension (B1): 11.0mm
- Dimension (C): 60mm
- Dimension (F): 60mm
- Dimension (d): 42mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 80mm
- Weight: 1.22 KG
- Made for Shaft Diameter: 48mm
- Profile Description: KN42x48
- Material: C45
- Part #: 64851000
- Dimension (A): 95mm
- Dimension (B): 75mm
- Dimension (B1): 11.0mm
- Dimension (C): 60mm
- Dimension (F): 60mm
- Dimension (d): 42mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 80mm
- Weight: 1.22 KG
