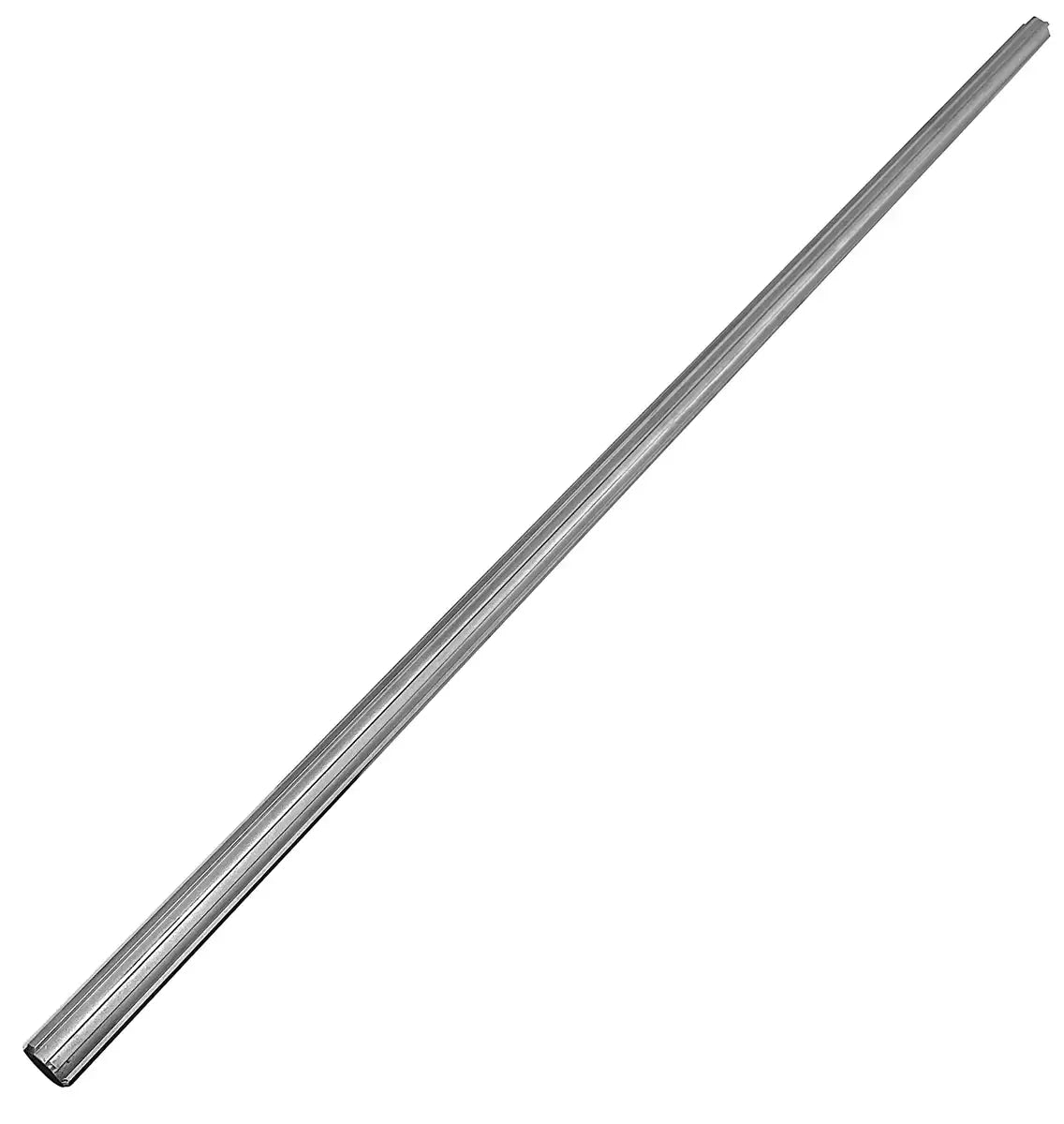

38mm Spline Shaft 8-Splines 304SS Material - 1000mm

Our premium stainless 38mm spline shaft, equipped with 8 splines and measuring 1000mm in length, is expertly machined from 304-grade stainless steel, offering excellent resistance to corrosion and abrasion. Ideal for food-grade, high-temperature, and low-temperature environments, this shaft adheres to DIN ISO 14 standards, ensuring compatibility and interchangeability with other brands and components such as hubs, collars, and couplings. Although it is available in a 1000mm length, we also provide other standard or custom lengths of stainless 38mm splined shafting. Engineered for precise and efficient torque transmission, it is perfect for industrial machinery, food processing equipment, and mechanical drives. Additionally, stainless 38mm spline shafts are effective for mechanically positioning components. For more information or to request a quote on our premium stainless 38mm spline shaft with 8 splines in a 1000mm length, please contact our customer service team, and we will be happy to assist you!

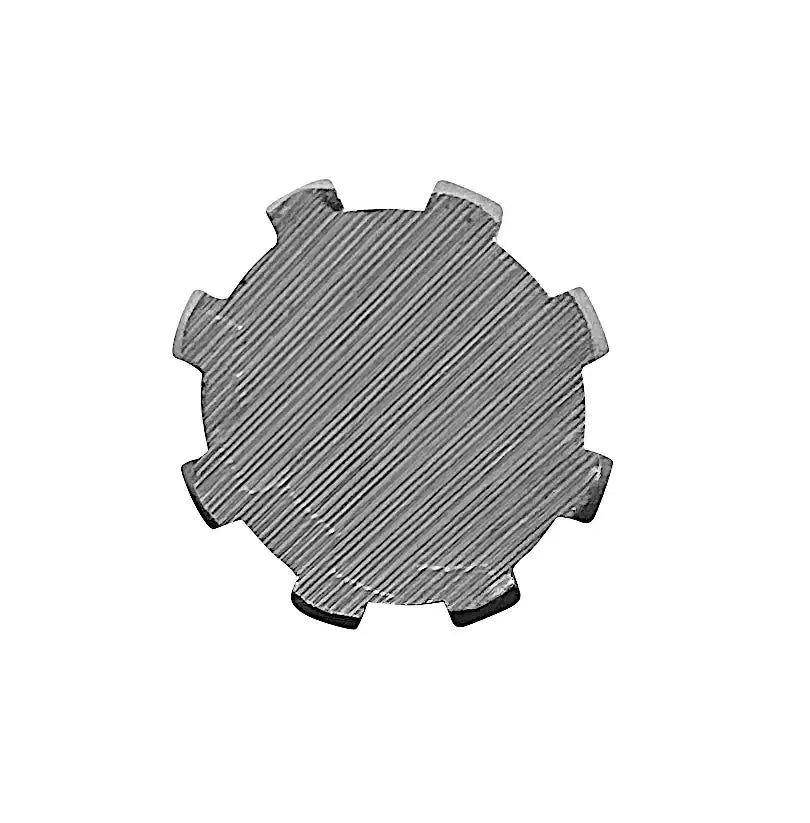

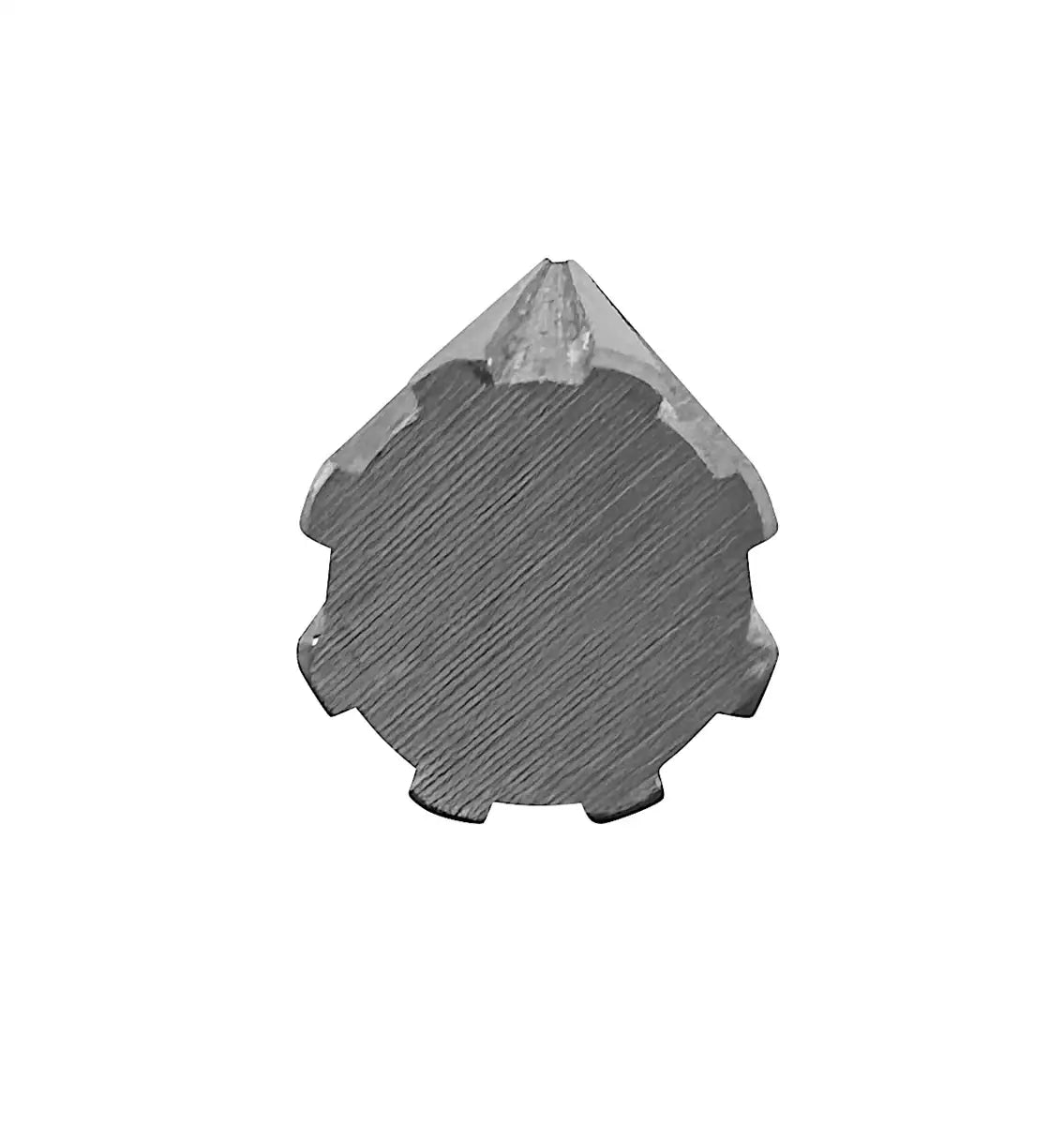

38mm Spline Shaft With 8-Splines Dimensions

• Shaft Diameter (D): 38mm
• Amount of Splines: 8
• Dimension (d): 32mm
• Dimension (b): 6mm
• Length: 1000mm
• Material: 304SS
• Weight: 7.433 Kg/ Meter
• Length Tolerance: 0.8mm/ Meter
• Maximum Torsion: 0.5mm/ Meter
