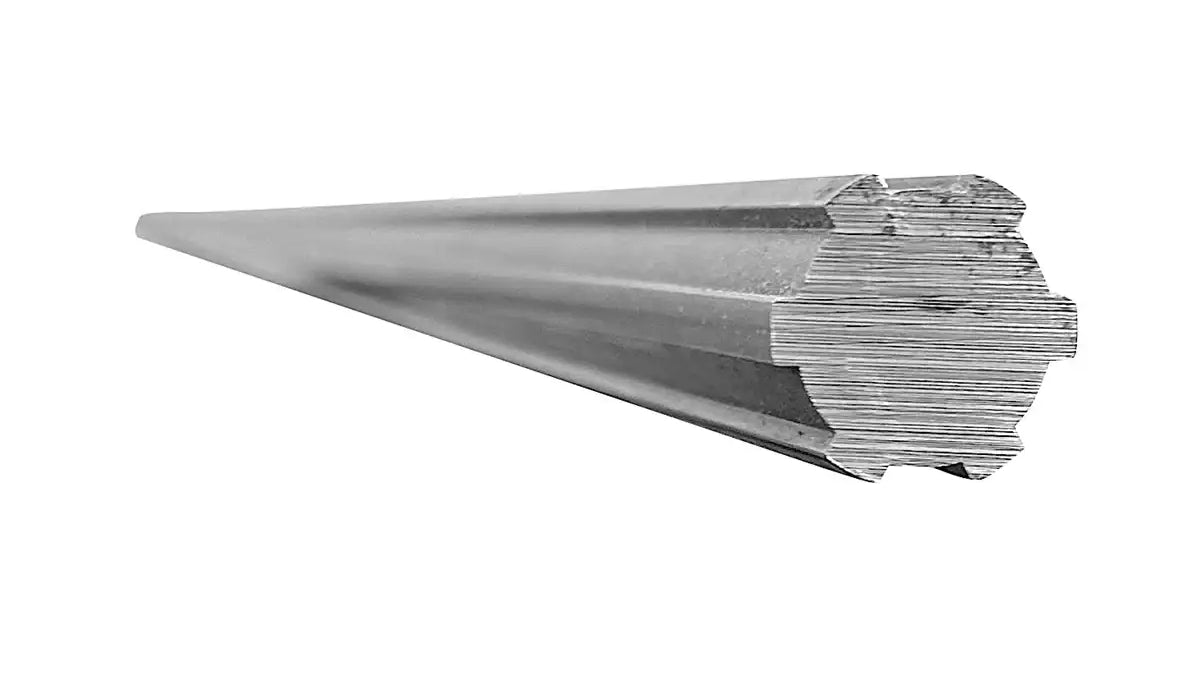

34mm Spline Shaft 6-Splines 304SS Material - 2000mm

Our high-quality stainless 34mm spline shaft, featuring 6 splines and measuring 2000mm in length, is precision-machined from 304-grade stainless steel, offering outstanding resistance to corrosion and abrasion. Suitable for food-grade, high-temperature, and low-temperature environments, this shaft adheres to DIN ISO 14 standards, ensuring compatibility and interchangeability with other brands and components such as hubs, collars, and couplings. While available in a 2000mm length, we also provide other standard or custom lengths of stainless 34mm splined shafting. Engineered for precise and efficient torque transmission, it is ideal for industrial machinery, food processing equipment, and mechanical drives. Additionally, stainless 34mm spline shafts can be used for mechanically positioning components. For more information or to request a quote on our premium stainless 34mm spline shaft with 6 splines in a 2000mm length, please contact our customer service team, and we will be happy to assist you!

34mm Spline Shaft With 6-Splines Dimensions

• Shaft Diameter (D): 34mm
• Amount of Splines: 6
• Dimension (d): 28mm
• Dimension (b): 7mm
• Length: 2000mm
• Material: 304SS
• Weight: 5.816 Kg/ Meter
• Length Tolerance: 0.8mm/ Meter
• Maximum Torsion: 0.5mm/ Meter
