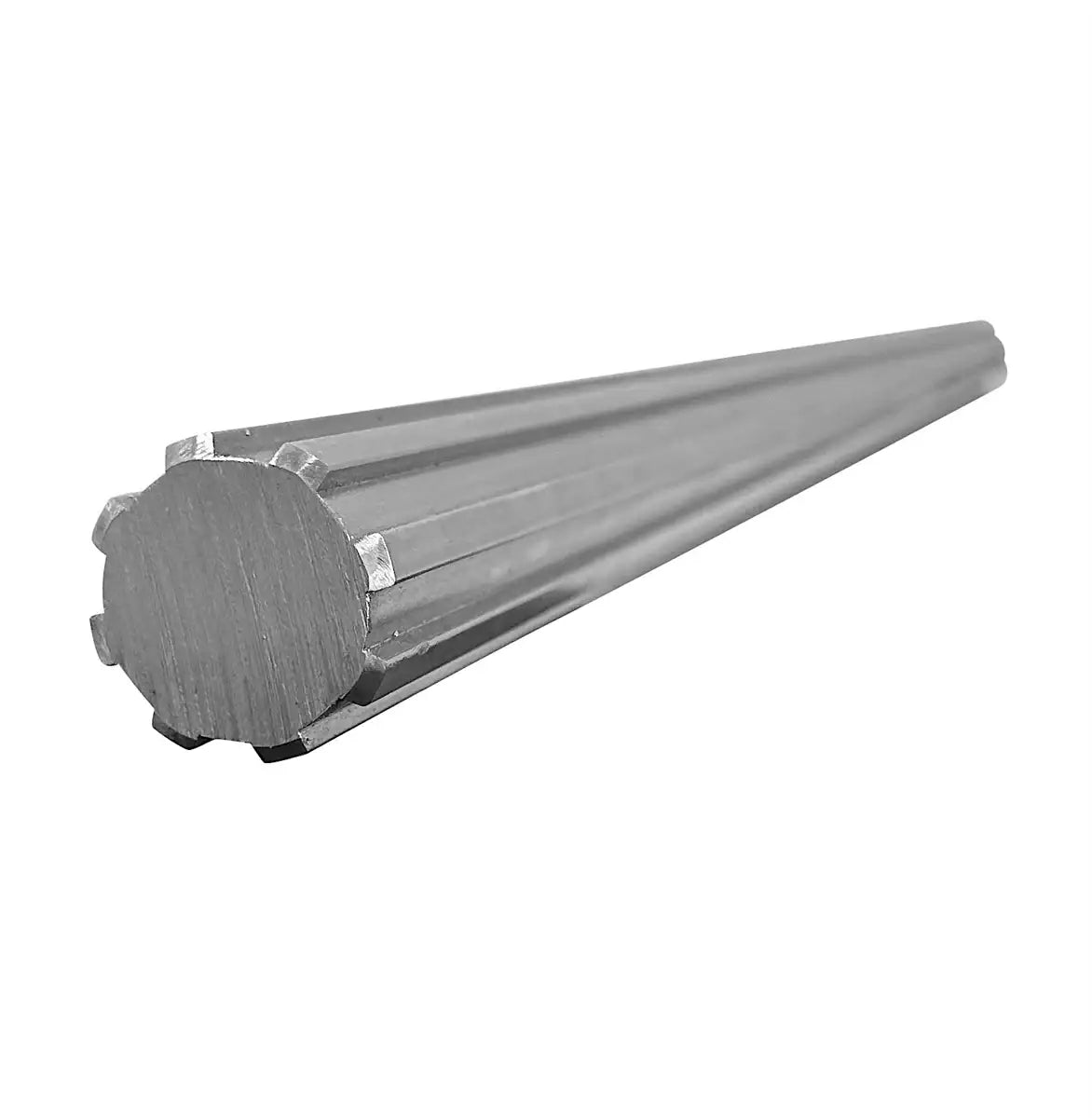

48mm Spline Shaft 8-Splines 304SS Material - 2000mm

Our top-grade stainless 48mm spline shaft, with 8 splines and a length of 2000mm, is expertly machined from 304-grade stainless steel to ensure outstanding resistance to corrosion and abrasion. Designed for food-grade, high-temperature, and low-temperature environments, this shaft complies with DIN ISO 14 standards, guaranteeing compatibility and interchangeability with other brands and components like hubs, collars, and couplings. While it is available in a 2000mm length, we also provide other standard or custom lengths of stainless 48mm splined shafting. Engineered for precise and efficient torque transmission, it is ideal for industrial machinery, food processing equipment, and mechanical drives. Additionally, stainless 48mm spline shafts are effective for mechanically positioning components. For more information or to request a quote on our premium stainless 48mm spline shaft with 8 splines in a 2000mm length, please contact our customer service team, and we will be happy to assist you!

48mm Spline Shaft With 8-Splines Dimensions

• Shaft Diameter (D): 48mm
• Amount of Splines: 8
• Dimension (d): 42mm
• Dimension (b): 8mm
• Length: 2000mm
• Material: 304SS
• Weight: 12.37 Kg/ Meter
• Length Tolerance: 0.8mm/ Meter
• Maximum Torsion: 0.5mm/ Meter
