Power Transmission > Miscellaneous Items > Splined Hubs With Flange

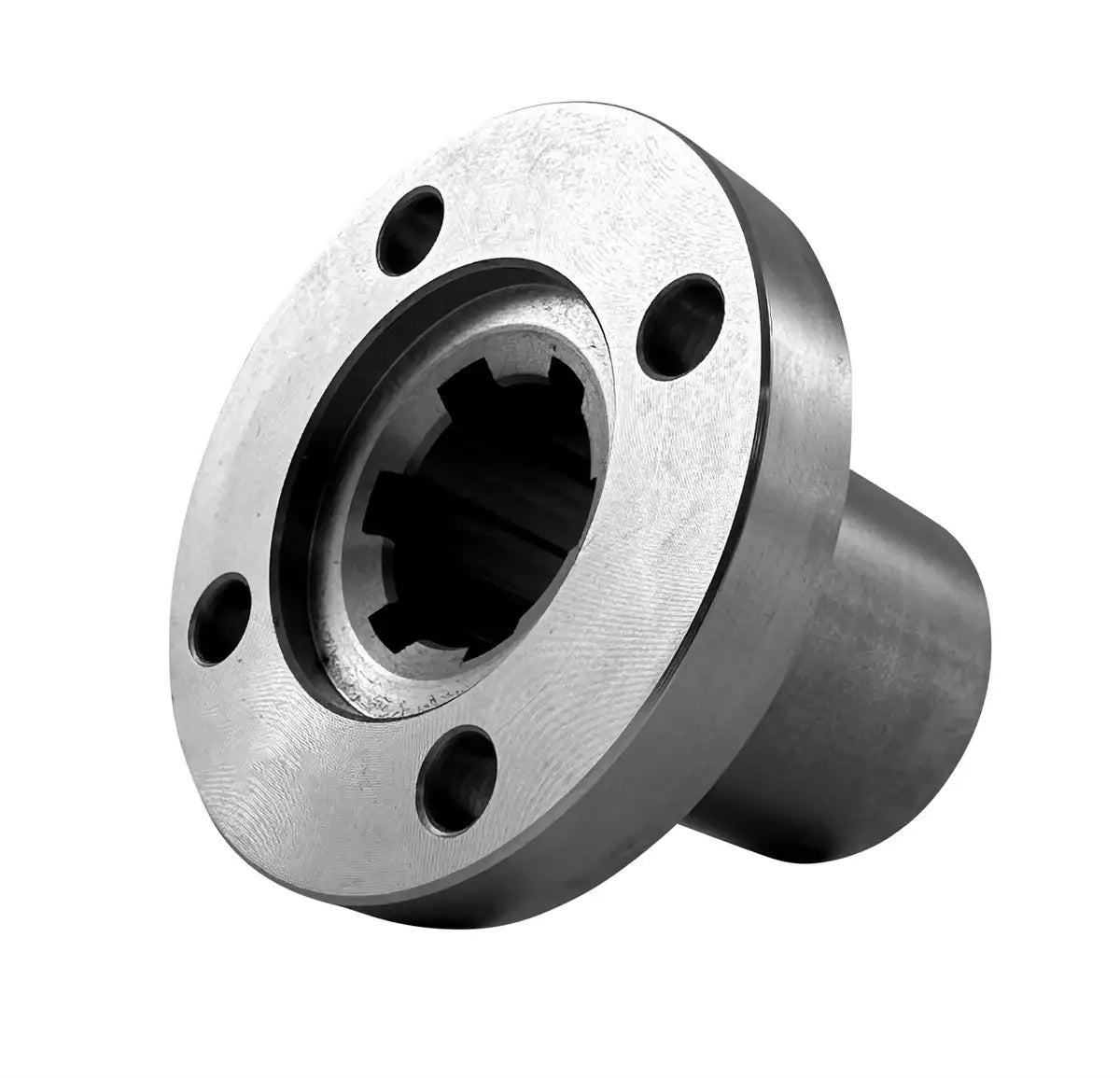

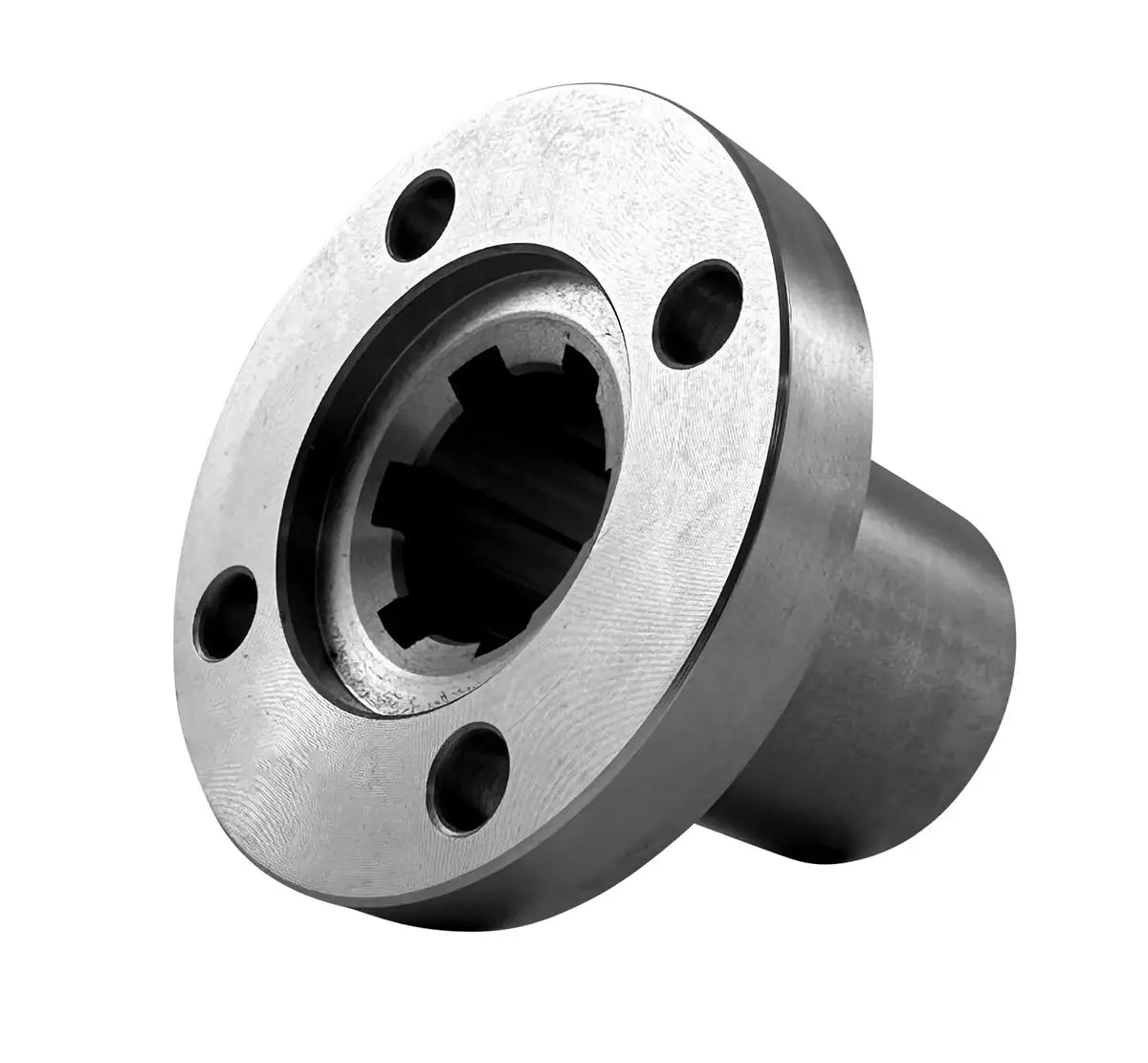

Splined Hub With Flange for 48mm Shaft With 8 Splines - Stainless Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64899510-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 48mm Shaft With 8 Splines - Stainless Material Features
Splined Hub With Flange for 48mm Shaft With 8 Splines - Stainless Material Specifications
This superior splined hub with a flange is designed for a 48mm shaft with 8 splines, crafted from precision stainless steel that adheres to ISO DIN 14 standards for seamless interchangeability. Made from 303-grade stainless steel, this hub is ideal for use in abrasive, corrosive, and food-grade environments. Flanged splined hubs are crucial for accurate torque transmission across various applications. Specifically tailored for a 48mm diameter splined shaft with 8 splines, it ensures easy installation and reliable, long-term performance. We also offer splined clamp collars with four pre-drilled holes to complement this hub. For further information or to request a quote on our premium splined hub with flange for a 48mm shaft with 8 splines, please contact our customer service team, who will be pleased to assist you!
48mm With 8 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 48mm
- Profile Description: KN42x48
- Material: Stainless
- Part #: 64899510
- Dimension (A): 95mm
- Dimension (B): 75mm
- Dimension (B1): 11.0mm
- Dimension (C): 60mm
- Dimension (F): 60mm
- Dimension (d): 42mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 80mm
- Weight: 1.22 KG
- Made for Shaft Diameter: 48mm
- Profile Description: KN42x48
- Material: Stainless
- Part #: 64899510
- Dimension (A): 95mm
- Dimension (B): 75mm
- Dimension (B1): 11.0mm
- Dimension (C): 60mm
- Dimension (F): 60mm
- Dimension (d): 42mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 80mm
- Weight: 1.22 KG
