Power Transmission > Miscellaneous Items > High-Quality Splined Shaft Collars

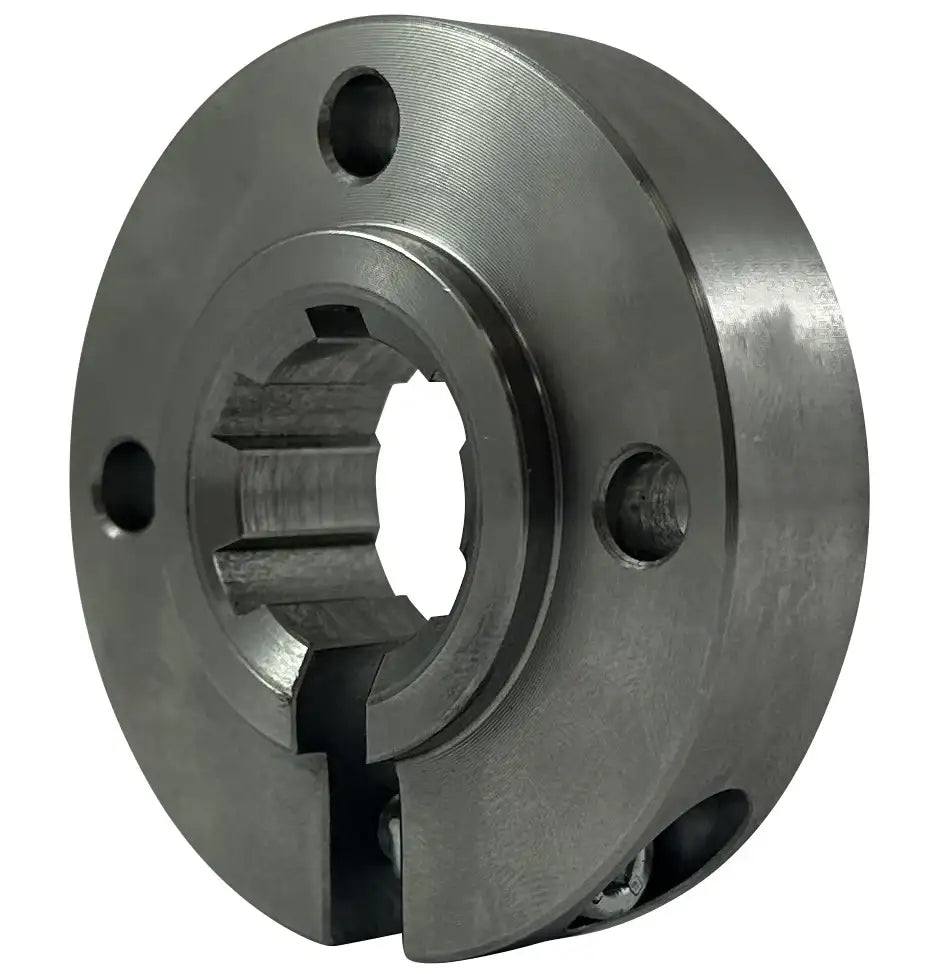

Clamp Collar For 48mm Splined Shaft With 8 Splines - Stainless Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 64899610-CLAMP-COLLAR
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Clamp Collar For 48mm Splined Shaft With 8 Splines - Stainless Steel Features
Clamp Collar For 48mm Splined Shaft With 8 Splines - Stainless Steel Specifications
Our high-quality clamp collar for a 48mm splined shaft with 8 splines is crafted from 303-grade stainless steel, making it suitable for abrasive, corrosive, and food-grade environments. It features four pre-drilled holes that align perfectly with a flanged splined hub. This mechanical device is designed to secure or position components on a splined shaft, with internal splines that precisely match those on the shaft for a secure fit. This design ensures effective torque transmission and resistance to rotational forces without slipping. For more information or to request a quote on our premium stainless steel clamp collar for a 48mm splined shaft with 8 splines, please contact us, and we'll be happy to assist you!
48mm Splined Clamp Collar Dimensions
- Part Number: 64899610
- Material: 303 Stainless
- Profile Description: 42 x 48
- Dimension (A): 95mm
- Dimension (B): 75mm
- Dimension (B1): 11.0mm
- Dimension (C): 60mm
- Dimension (d): 42mm
- Dimension (L): 22mm
- Dimension (K): 3mm
- Dimension (T): 11.0mm
- Dimension (S): M8
- Weight: 0.82KG
- Part Number: 64899610
- Material: 303 Stainless
- Profile Description: 42 x 48
- Dimension (A): 95mm
- Dimension (B): 75mm
- Dimension (B1): 11.0mm
- Dimension (C): 60mm
- Dimension (d): 42mm
- Dimension (L): 22mm
- Dimension (K): 3mm
- Dimension (T): 11.0mm
- Dimension (S): M8
- Weight: 0.82KG
