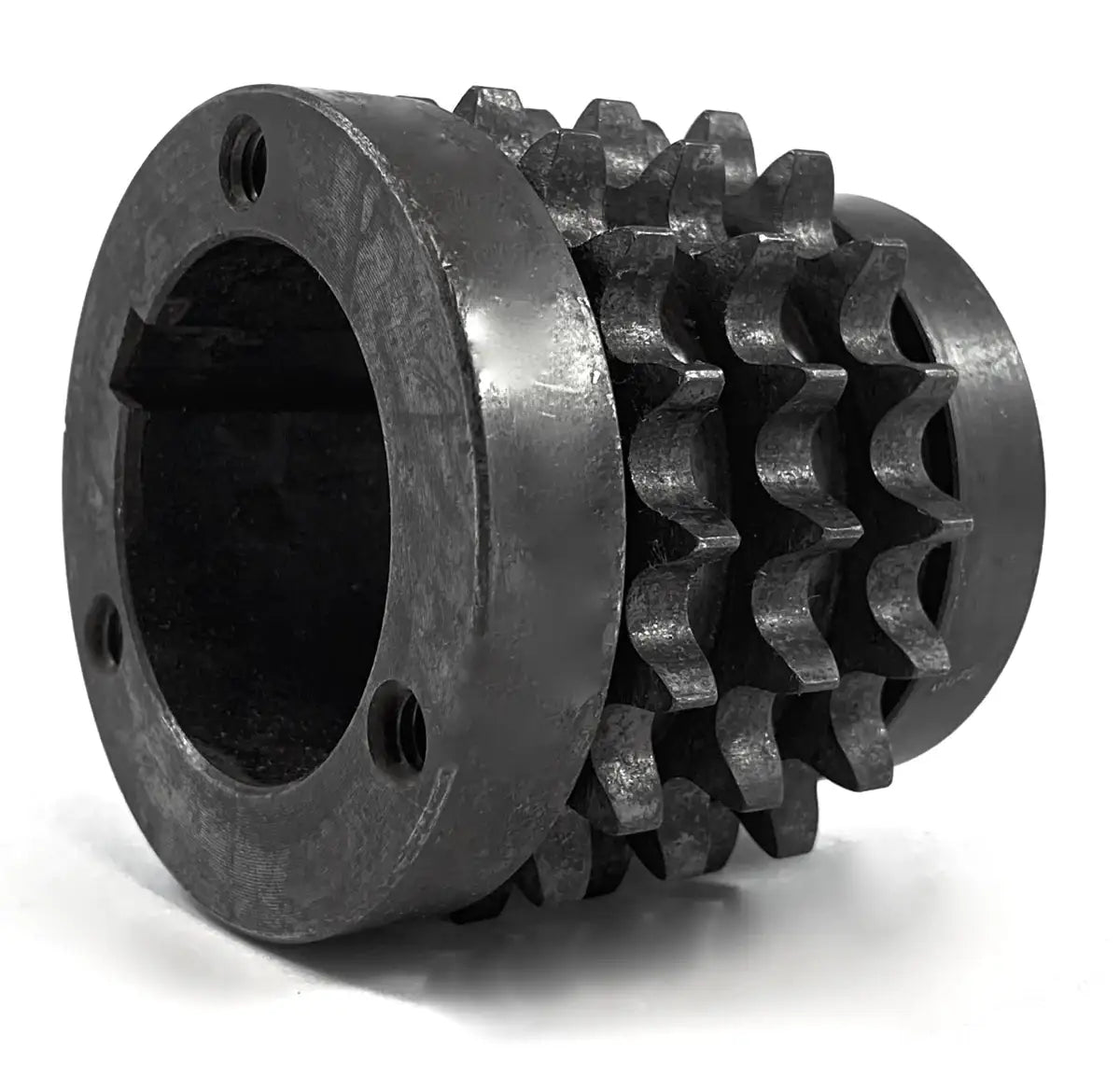

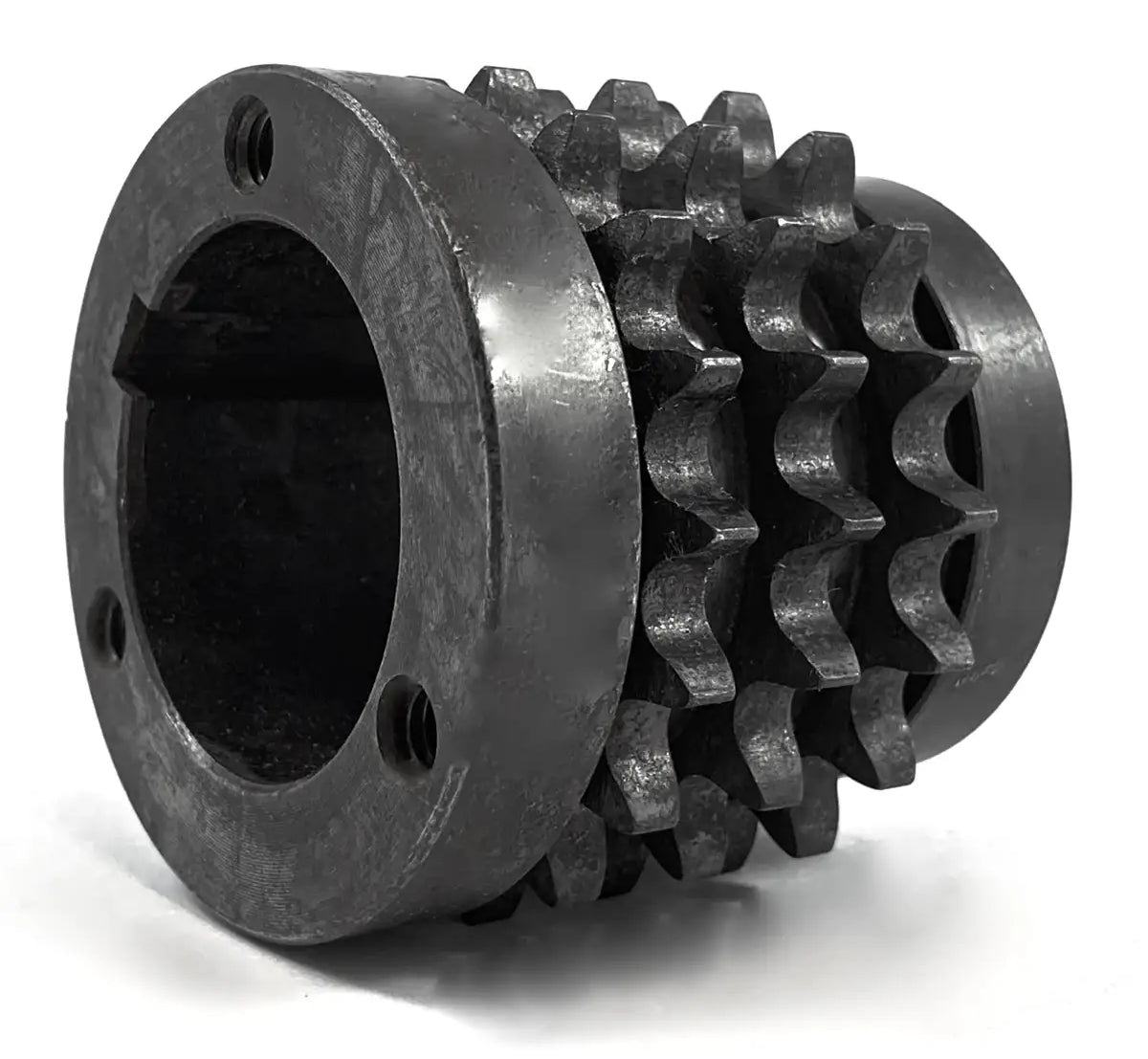

Triple E40Q48H Sprocket
Triple E40Q48H Sprocket
Note:
Custom Cut to Length Chain Also Available
Product Code: E40Q48H-SPROCKET
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
E40Q48H Sprocket is a triple 48-tooth taper bushed style sprocket that utilizes a Q1 bushing. Our triple E40Q48H sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. The sprocket also has heat-treated hardened teeth that further increases the working life and durability. Besides the sprocket, we also stock Q1 bushings, 40-3 triple roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
E40Q48H Sprocket Dimensions
- Sprocket Size: E40Q48H
- Tooth Count: 48
- Bushing Type: Q1
- Outside Diameter: 7.930"
- Pitch Diameter: 7.645"
- Sprocket Type: 22
- Maximum Bore: 2-11/16"
- Dimension (OL): 2-25/32"
- Dimension (L): 2-1/2"
- Dimension (C): 0"
- Dimension (H): 4-1/8"
- Dimension (P): 1-3/32"
- Dimension (T): 0.275"
- Sprocket Weight With Bushing: 18.7 LBS
- Sprocket Weight: 15.2 LBS
Feature
- Premium Quality ANSI Triple Sprocket
- Made To Precision Tolerances
- Constructed From Mild Steel
- Engineered For Optimum Performance
- Sprocket Size: E40Q48H
- Tooth Count: 48
- Bushing Type: Q1
- Outside Diameter: 7.930"
- Pitch Diameter: 7.645"
- Sprocket Type: 22
- Maximum Bore: 2-11/16"
- Dimension (OL): 2-25/32"
- Dimension (L): 2-1/2"
- Dimension (C): 0"
- Dimension (H): 4-1/8"
- Dimension (P): 1-3/32"
- Dimension (T): 0.275"
- Sprocket Weight With Bushing: 18.7 LBS
- Sprocket Weight: 15.2 LBS
