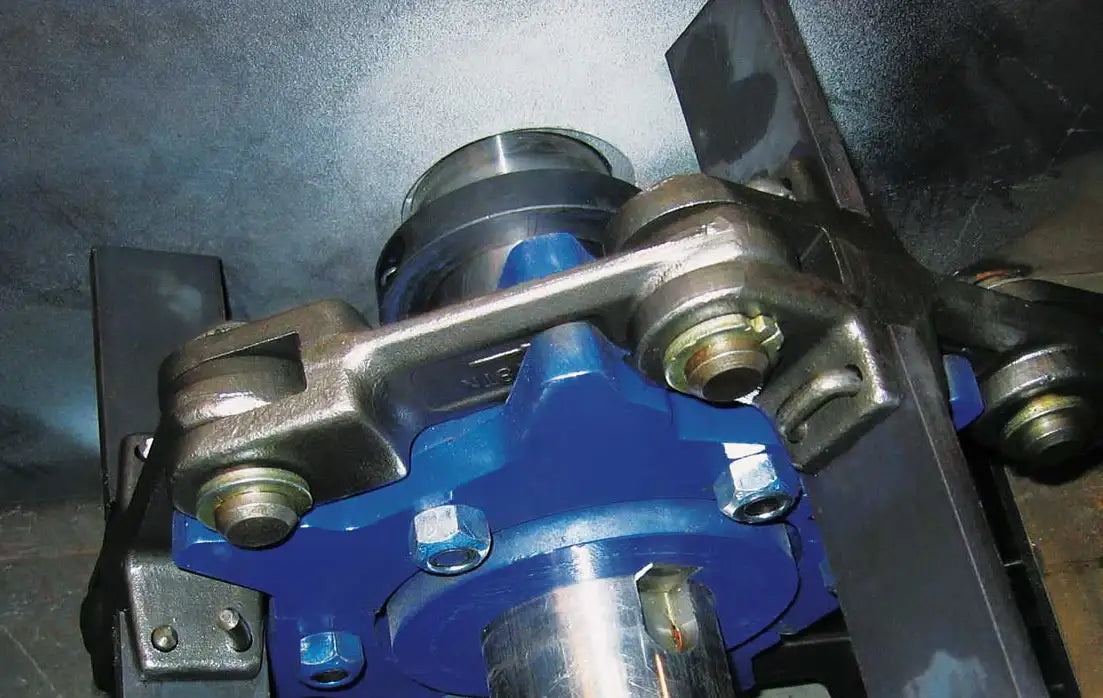

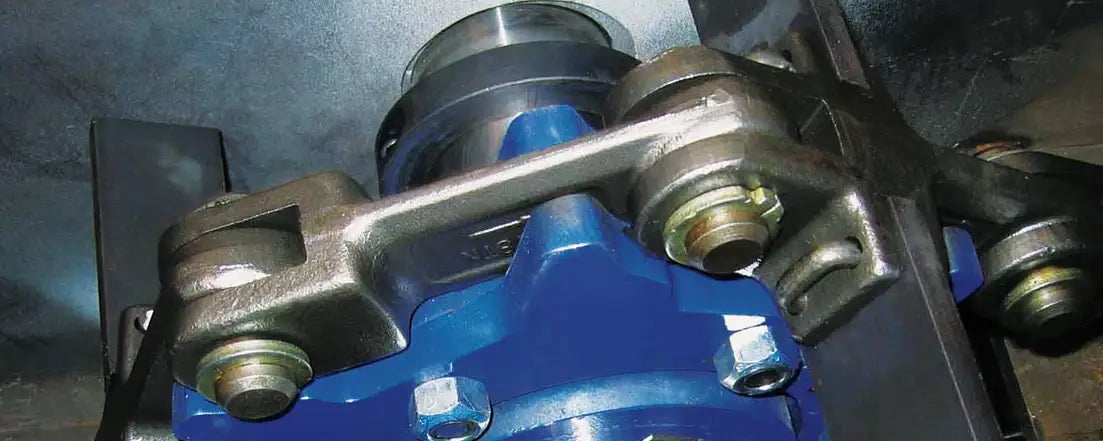

F-142183 Chain - Forged Link Chain

Triple Series F-142183 Chain has proven to be one of the most reliable conveying mediums offering a combination of versatility, strength, and abrasion resistance. Typically F142183 chain is found in wastewater applications, food processing, chemical plants, foundries, and even refineries. The high strength and extreme durability of the F-142183 chain make it an ever-growing option for conveying applications. What separates out forge link chain is various heat-treat processes and the material options available.

• TN _ Manganese Chrome Alloy Steel (20MnCr5) Case hardened
• CN _ Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
• CD _ Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered

We also supply F-142183 chain sprockets, pin styles, and attachment types. For more information or to get a quote please contact us and we will be happy to assist you.

F142183 Chain Dimensions

• Chain Size: F-142183
• Pitch (P): 142mm
• Dimension (T): 42mm
• Dimension (C): 50mm
• Dimension (S): 19mm
• Dimension (Z): 92mm
• Dimension (G): 13mm
• Bolt-Hole Diameter (D): 25mm
• TN Option Breaking Load: 290 kN
• CN Option Breaking Load: 320 kN
• CD Option Breaking Load: 550 kN
• Weight: 14.20 kG/ M

F-142183 Pin Options

Type 22 - Standard Double Circlip	Type HD/22 - Hardened Pin With Standard Circlip	Type HD/45/28RP - Headed Pin With Collar and Roll Pin Retention
Type HD/45/28S - Headed Pin With Collar and S Cotter Retention	Type SN/28S - Antirotation Snub Pin Washer and S Cotter Retention	Type HD/28S - Headed Pin With Washer and S Cotter Retention

F-142183 Chain AttachmentsB-Type Flight Attachment for Horizontal Conveying:

T-Type Attachment for Horizontal and Slightly Inclined Conveying:

U Type Attachment for Horizontal and Incline Conveying (with or without blanking plate):

C Type Attachments for Horizontal, Inclined, and Vertical Conveying (with or without blanking plate):

OO Type Attachments for Horizontal and Inclined Conveying (with or without blanking plate):

Note: Please provide required dimensions when requesting attachments.
Additional Wastewater Treatment Products:

• Sprockets
• Bearings
• Gear Boxes/ Reducers
• Motors/ Drives
• Pumps & Seals
• Flights, Flight Boards, & Flight Monitoring
• Sensors
• Helical Scum Skimmers
• Wear Strips, Wear Shoes, Filler Blocks
• Static Sleeves & Wall Bearings
