S810 SF4 Attachment
Note:
Custom Cut to Length Chain Also Available
SKU: S810-SF4-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
S810 SF4 Attachment Features
S810 SF4 Attachment Specifications
S810 SF4 Attachment is a cast material attachment made for S810 collector chain. The S810 SF4 attachment is made for 65mm (2.55906") flights (also known as sludge flights), a custom 65mm (2.55906") filler block, and is commonly accompanied with carry and return wear shoe parts. We can supply the S810 cast chain with SF4 attachments in any configuration needed, along with the accompanying wear components and hardware. To get a quote on S810 SF4 Attachment links or S810 chain with SF4 attachments please contact us and we will be happy to assist you.

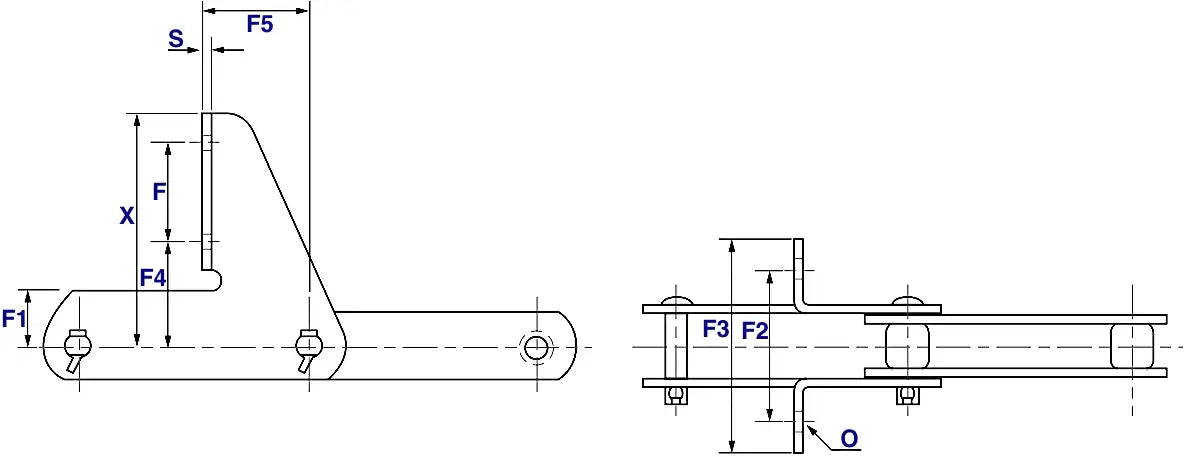

S810 SF4 Dimensions
- Attachment Type: SF4
- Chain Size: S810
- Dimension (F2): 100mm
- Dimension (F3): 140mm
- Dimension (F5): 76mm
- Dimension (X): 155mm
- Dimension (F): 65mm
- Dimension (F4): 70mm
- Dimension (F1): 22mm
- Dimension (O): 14mm
- Dimension (S): 4.5mm
- Attacment Weight: 3.2 Kg
