Description
Specification

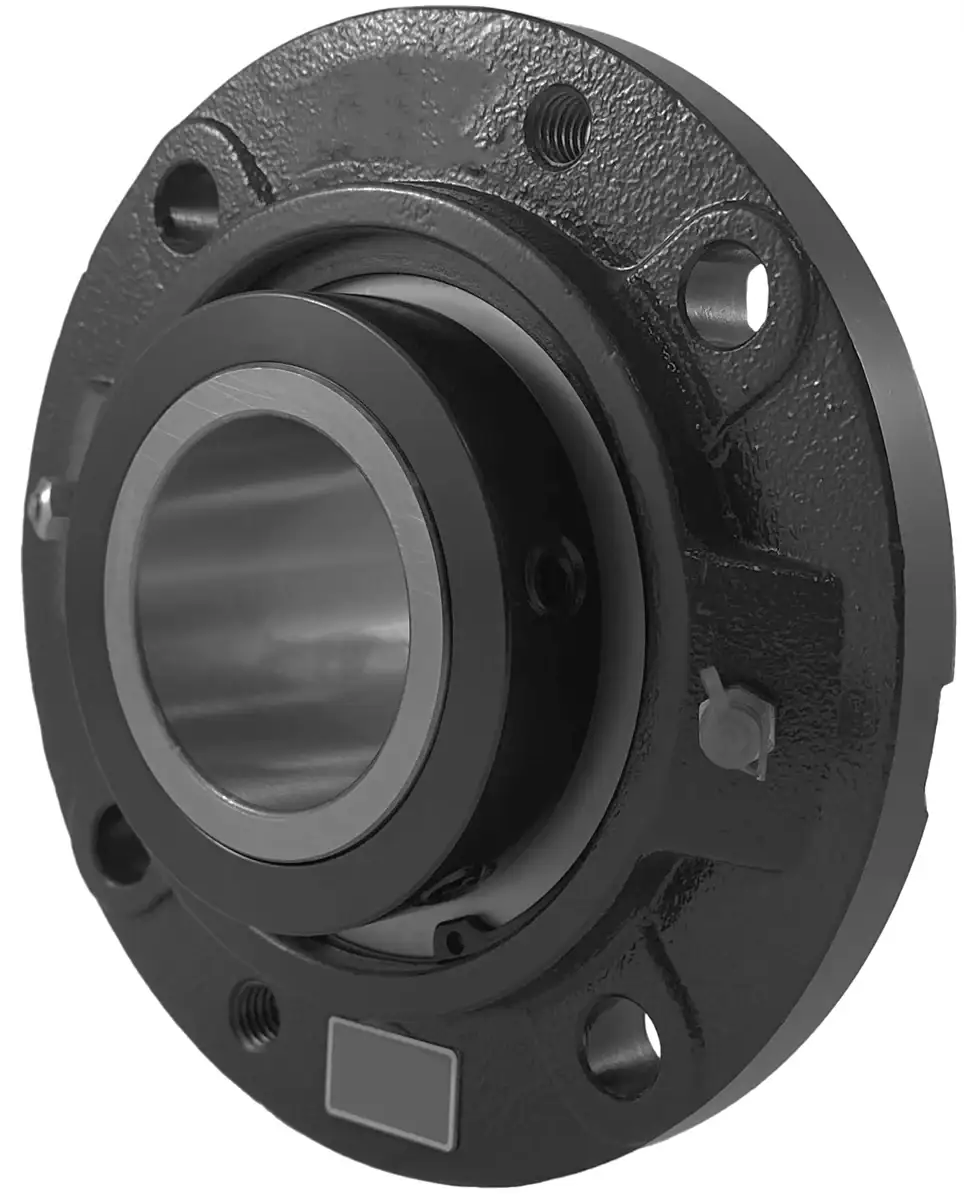

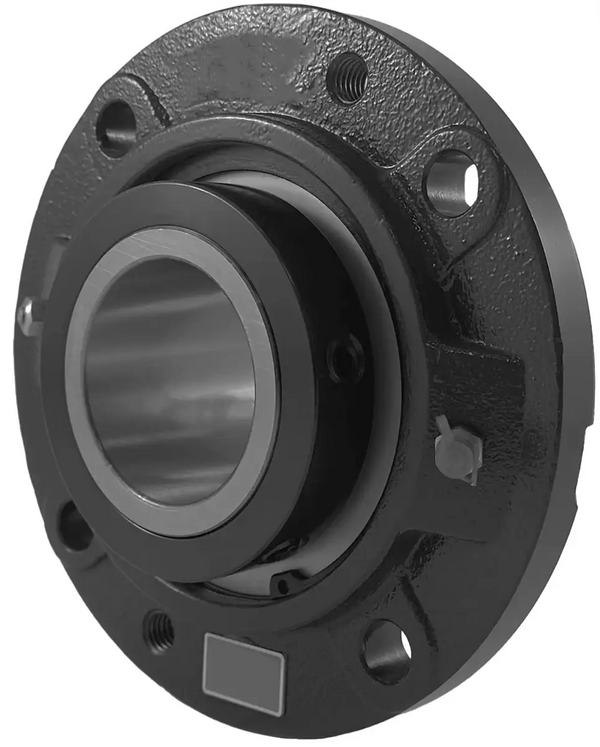

FC-S2-307RE bearing is a spherical 4-bolt flange cartridge expansion bearing unit with a 3-7/16" bore. Our directly interchanged SFC-3-7/16TE bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. The housing features threaded removal holes "S" along with pry slots to remove the unit easily. FC-S2-307RE bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an FC-S2-307RE interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, this expansion unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SFC-3-7/16TE bearings interchange with other brands such as Dodge FC-S2-307RE, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our SFC-3-7/16TE bearing replacement, contact our customer service team, and we will be happy to assist you!

SFC-3-7/16TE Bearing Dimensions

FC-S2-307RE Bearing | SFC-3-7/16TE Pillow Block Bearing - Expansion
  • Part #: SFC-3-7/16TE
  • Interchanges With: FC-S2-307RE
  • Weight: 33.8 LBS
  • Dimension (d): 3-7/16"
  • Dimension (P): 8.625"
  • Dimension (A): 10.250"
  • Dimension (Z): 4.219" (+/- 0.050")
  • Dimension (J): 1.938"
  • Dimension (BL): 4.031"
  • Dimension (F): 7.375"
  • Dimension (K): 5.125"
  • Dimension (G): 0.875"
  • Bolt Hole (T): 0.875"
  • Removal Hole QTY: 2
  • Removal Hole Size (S): 3/4-10 UNC"
  • Dynamic Load Capacity (Cr): 63,280 LBS
  • Dynamic Load Capacity (Cr): 281.5 kN
  • Static Load Capacity (Cor): 84,100 LBS
  • Static Load Capacity (Cor): 374.1 kN


Feature

  • Directly Interchanges With FC-S2-307RE Bearing
  • Expansion Unit
  • Advanced PTFE Seals
  • Self-Aligning Bearing Unit
  • Tough Mild-Steel Locking Collar
  • Metal ID Tag For Easy Re-Order
  • Solid High-Strength Housing With Precision Foot Ends
  • Bearing Cavity 33% Filled With Shell Gadus S2 V220 Grease
  • 1/8" NPT Grease Fitting
  • Accepts Automatic Grease Dispensers
  • Pressure Relief Valve
  • Grease Purge Valve Protects Seals From Over Lubrication
