Premium 50 O-Ring Roller Chain | 50 O-Ring Chain - 10FT
Note:
Custom Cut to Length Chain Also Available
$189.99
SKU: PREMIUM-50OR-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote

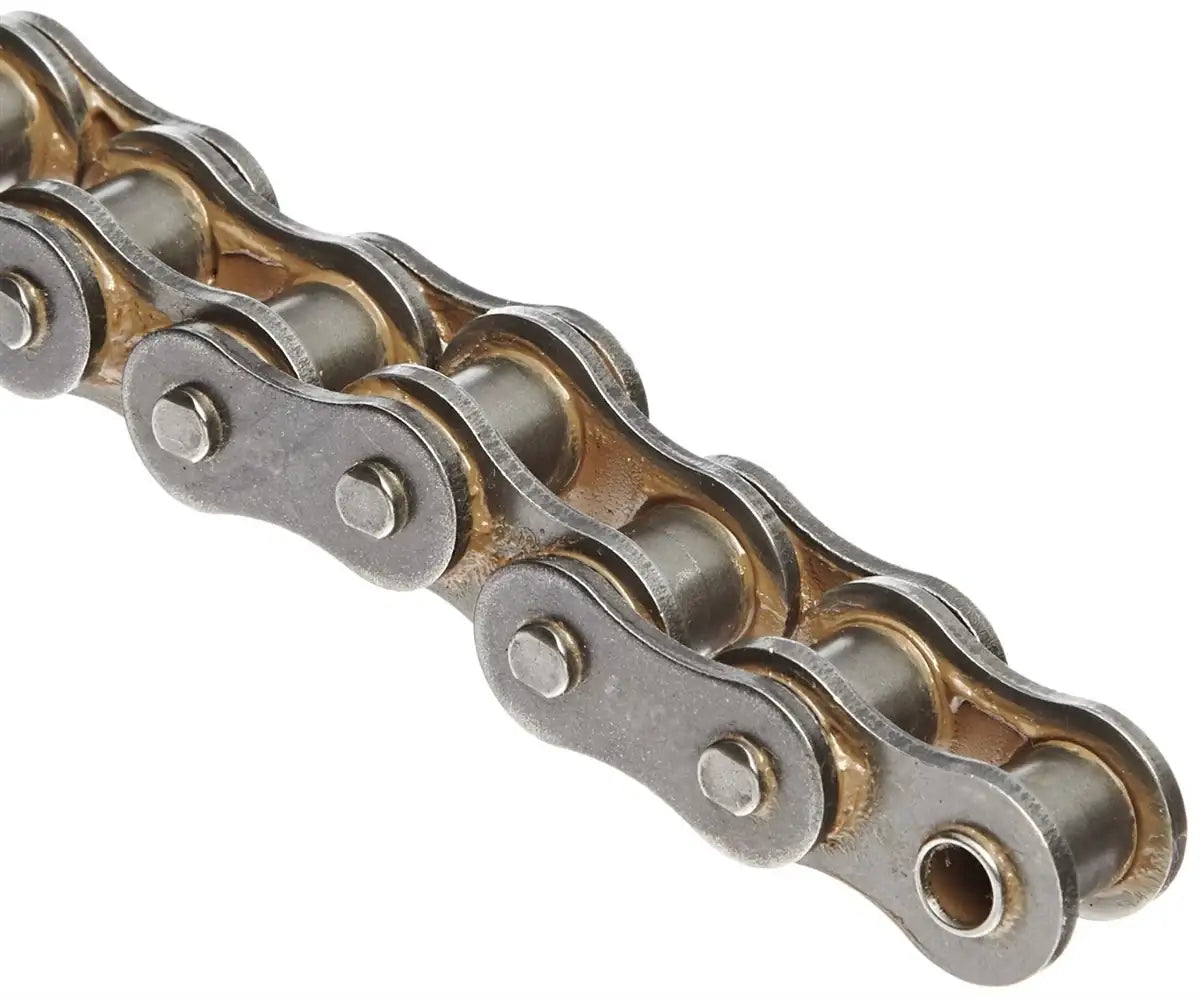

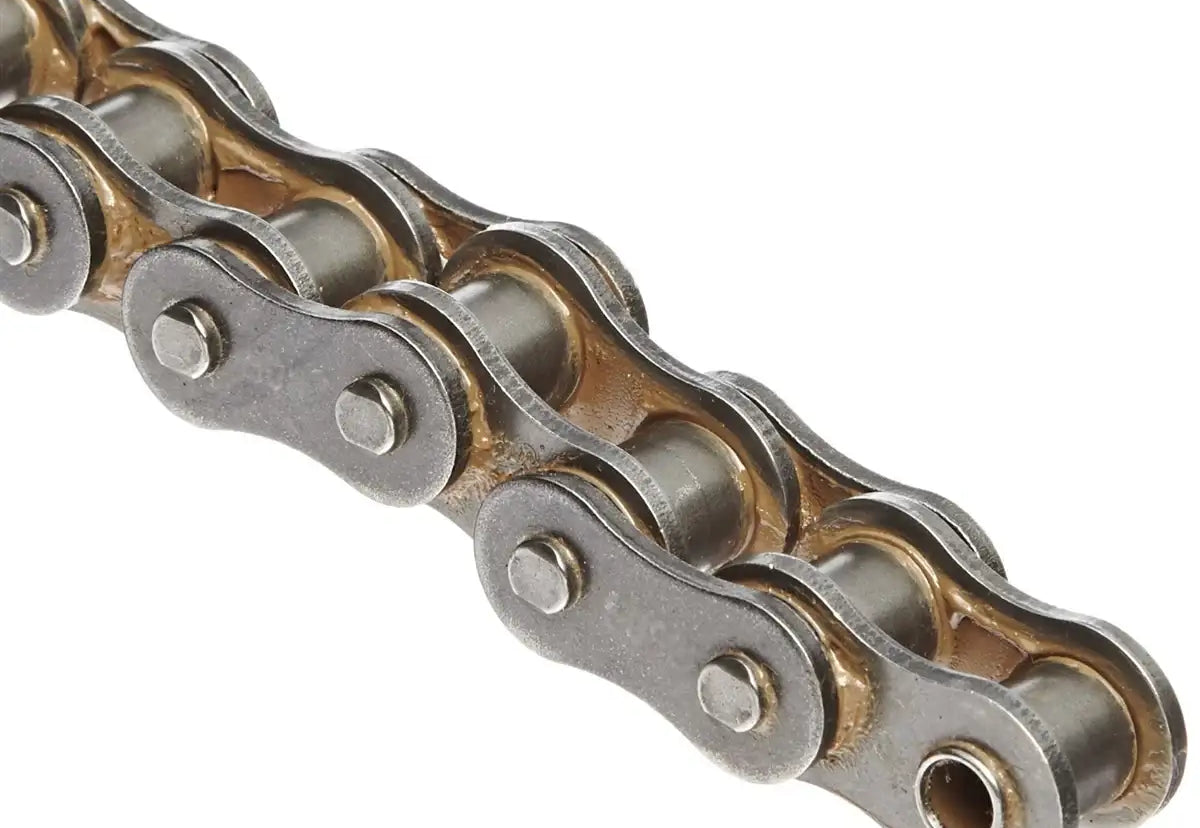

Premium 50 O-Ring Roller Chain | 50 O-Ring Chain - 10FT Features
Our premium 50 O-Ring roller chain is manufactured to deliver superb performance, strength, and durability compared to other existing chains. 50 o-ring chain is a 5/8" pitch, sealed chain designed for the dirtiest or hardest-to-service applications within the power transmission industry! The 50 o-ring roller chain assembly features high-quality nitrile rubber o-rings placed between the inner and outer link plates. These o-rings seal the internal moving components of the 50 chain, keeping lubrication in while keeping debris out. This feature helps in particularly dirty or dusty applications and where chain re-lubrication is impossible or difficult. A 50 o-ring roller chain lasts twenty times longer than a traditional 50 chain in specific applications. Moving past the o-rings, our premium 50 o-ring chain is precision manufactured from top-quality carbon and alloy steel materials, features solid bushings & rollers, eat-treated and shot peened components, hardened pins, and has been factory pre-loaded. The combination of these features drastically improves life and performance. 50 O-ring roller chain is used in applications such as; agricultural, industrial drives, conveyors, mining, and construction equipment. As a standard, the premium series o-ring chains can operate in temperatures up to 176 degrees Celcius for higher temperature ranges; contact us. Additionally, o-ring chains have a "silencing" effect by decreasing the noise generated from the chain by 3 dB. One important note to keep in mind is if you are swapping out a standard chain for an o-ring chain, there needs to be adequate clearance for the slightly additional width that an o-ring chain has. Finally, o-ring chains operate o standard ANSI chain sprockets. For additional information or a quote on our premium 50 o-ring roller chain, contact our customer service team; we will be happy to assist you!
50 O-Ring Chain Dimensions
- Chain Size: 50OR
- Pitch (P): 0.625"
- Roller Diameter (I): 0.400"
- Plate Thickness (T): 0.079"
- Inside Width (O): 0.375"
- Plate Height (H): 0.594"
- Pin Diameter (U): 0.200"
- Chain Width (W): 0.929"

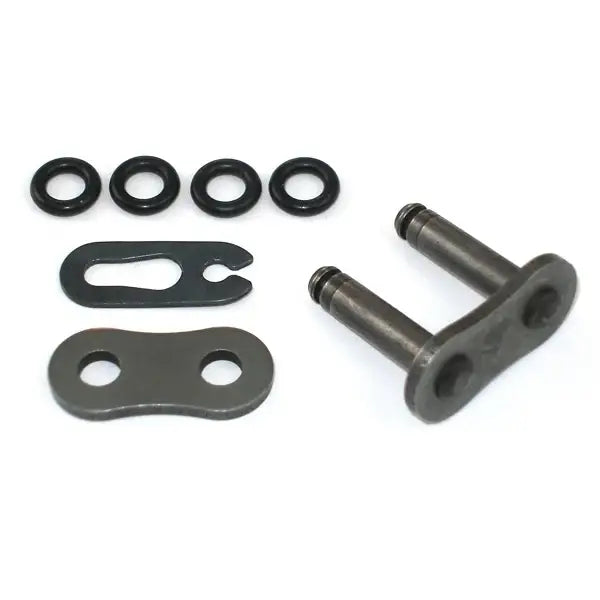

- Connecting Link Width (X): 0.986"
- Weight: 0.75 LBS/ FT
