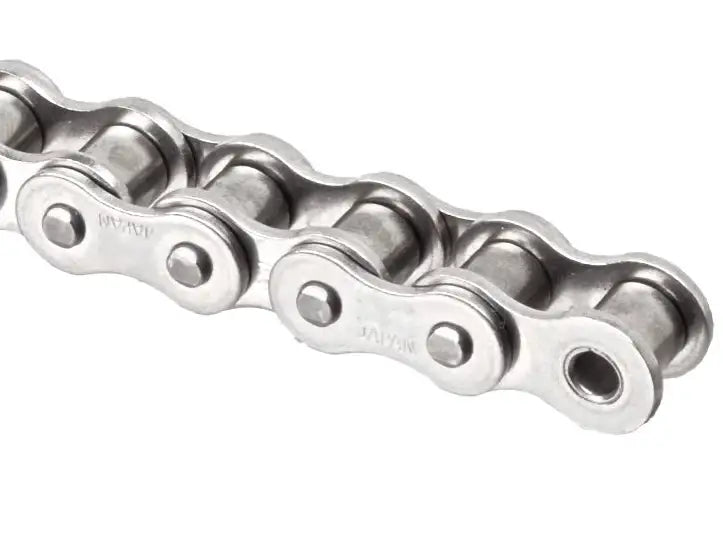

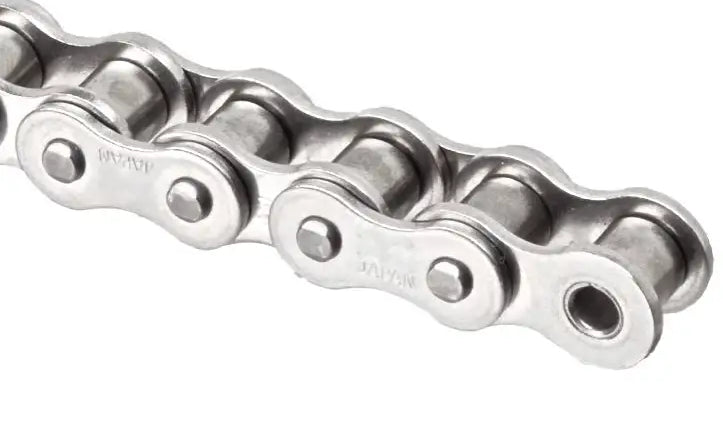

Premium 50 Stainless Steel Roller Chain 10ft Box
Login to Request a Quote
This premium 50 stainless steel roller chain sets the bar in terms of performance, lifespan, and smooth operation. Our superior 50 stainless steel roller chain comprises precision components made from top-quality 304-grade stainless material. Dimensionally, this 50SS stainless chain conforms to ANSI B29.1 standards for interchangeability with other brands but far exceeds the standard in quality and performance! We standardly supply this chain in a 10ft box, including one connecting/ master link, or in reel lengths of 50ft and 100ft. Typical applications for 50 stainless roller chains include food and beverage processing, scientific instruments, corrosive and abrasive environments, bakeries, and more! Discover the difference when you use our premium 50 stainless steel roller chain. For additional information or to get a quote on this 50SS chain, contact our customer service team, and we will gladly assist you!
50 Stainless Steel Chain Dimensions
- Part #: 50SS
- Pitch (P): 0.625"
- Roller Width (R): 0.375"
- Roller Diameter (D): 0.400"
- Overall Width (W): 0.805"
- Connecting Link Overall Width (X): 0.862"
- Plate Height (H): 0.594"
- Plate Thickness (T): 0.079"
- Pin Diameter (L): 0.200"
- Tensile Strength: 4,450 LBS
- Working Load: 154 LBS
- Weight Per Foot: 0.68 LBS
- Part #: 50SS
- Pitch (P): 0.625"
- Roller Width (R): 0.375"
- Roller Diameter (D): 0.400"
- Overall Width (W): 0.805"
- Connecting Link Overall Width (X): 0.862"
- Plate Height (H): 0.594"
- Plate Thickness (T): 0.079"
- Pin Diameter (L): 0.200"
- Tensile Strength: 4,450 LBS
- Working Load: 154 LBS
- Weight Per Foot: 0.68 LBS
