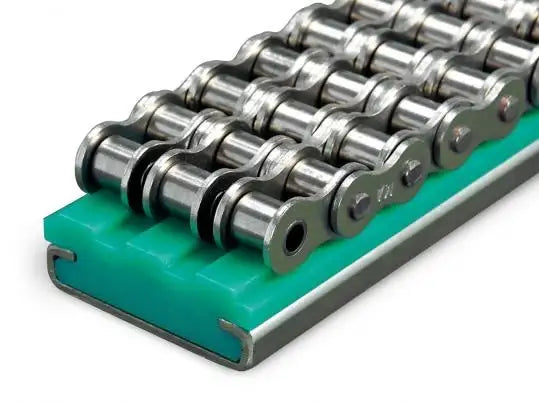

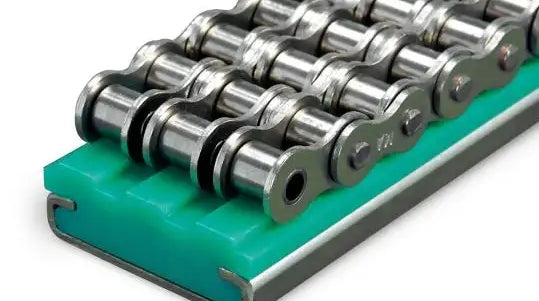

Type-CT 16B-3 Chain Guide - Triplex Mounted

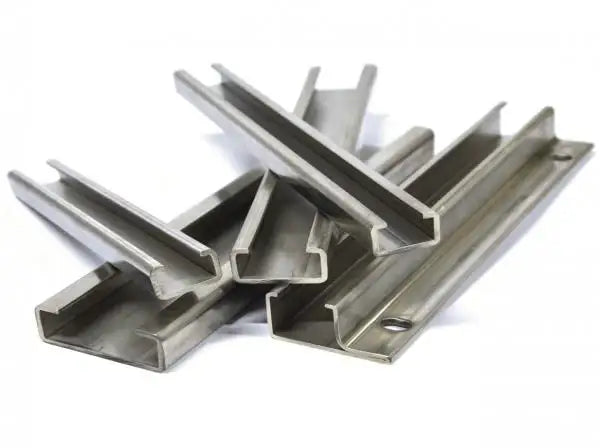

Our mounted Type-CT 16B-3 chain guide is manufactured to high precision tolerances and conforms to ISO and DIN 8187 standards, thus guiding 16B-3 roller chain in the most effective and productive manner possible. This chain guide is a mounted style meaning that it uses a steel mounting channel, specifically the Type-CT 16B-3 chain guide uses a C6 profile. We keep C6 profile mounting channels in stock in galvanized, non galvanized, and stainless steel materials. Using a roller chain guide is common in most conveying applications where you don't want metal-on-metal contact for wear purposes. Not only does using a chain guide drastically increase the wear life of a roller chain, but it also reduces on noise levels in applications that have metal-on-metal contact. This guide is typically in stock as 10ft lengths but we can also supply chain guides in custom lengths upon request. Standardly this guide is in stock as a green UHMW that conforms to European guidelines but other materials are available upon request.

Type CT 16B-3 Chain Guide Dimensions

• Chain Size: 16B-3
• Chain Dimensions: 1" X 17mm
• Dimension (B): 79.5mm
• Dimension (A): 80mm
• Dimension (H): 20mm
• Dimension (N): 22mm
• Dimension (F): 15.7mm
• Dimension (T): 3.5mm
• Dimension (W): 79.5mm

C6 Profile Dimensions

• Dimension (B): 80mm
• Dimension (T): 65mm
• Dimension (H): 10mm
• Dimension (W): 2mm

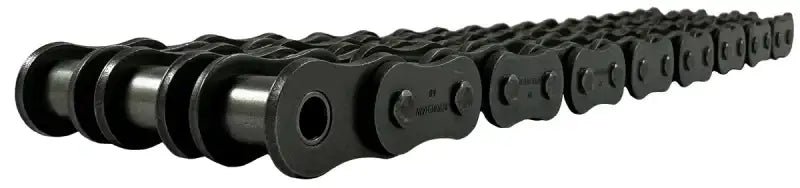

Besides chain guides we can also supply high quality metric roller chains, metric roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-CT 16B-3 triplex mounted chain guide or for additional information please contact our sales team and we will be happy to assist you.
