General Duty Plus #100-2 Roller Chain - 10ft Box

#100-2 Double Strand Riveted Roller Chain



Alternative Views:


Our Price: $499.99


Availability: Usually Ships Within 24 Hours
Product Code: GDP-100-2-10FT
Qty:

Description Technical Specs

General Duty Plus #100-2 Double Strand Roller Chain

This #100-2 double strand roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat-treated components that drastically increase the chains strength, working life, and overall performance. This #100-2 double strand roller chain has a tensile strength of 51,300lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #100-2 double strand roller chain at alternate lengths per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #100-2 Double Strand Roller chain or any of its accessories, please contact us and we will be happy to assist you.

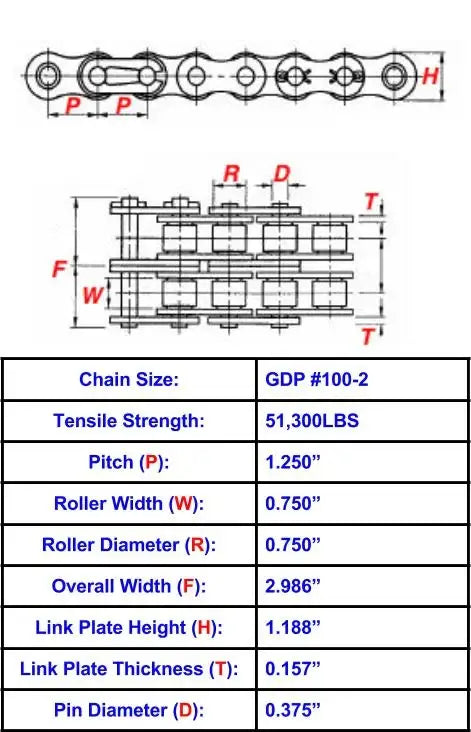

Dimensions:

  • Chain Size: #100-2
  • Tensile Strength: 51,300lbs
  • Pitch (P): 1.250"
  • Roller Width (W): 0.750"
  • Roller Diameter (R): 0.750"
  • Overall Chain Width (F): 2.986"
  • Link Plate Height (H): 1.188"
  • Link Plate Thickness (T): 0.157"
  • Pin Diameter (D): 0.375"
  • Specifications Met: ANSI Standards

Phone: (407) 347-3519
Email:
sales@usarollerchain.com
About Us
Features
    • High Quality And Durable
    • Double Strand Roller Chain
    • Tensile Strength: 51,300lbs
    • Constructed of Hardened Steel For Increased Strength & Performance
    • Shot Peened For Increased Fatigue & Durability
    • Pre-stretched For Higher Ware Resistance
    • Solid Rollers For Better Performance & Overall Operation
    • Fully Meets & Exceeds All ANSI Standards
