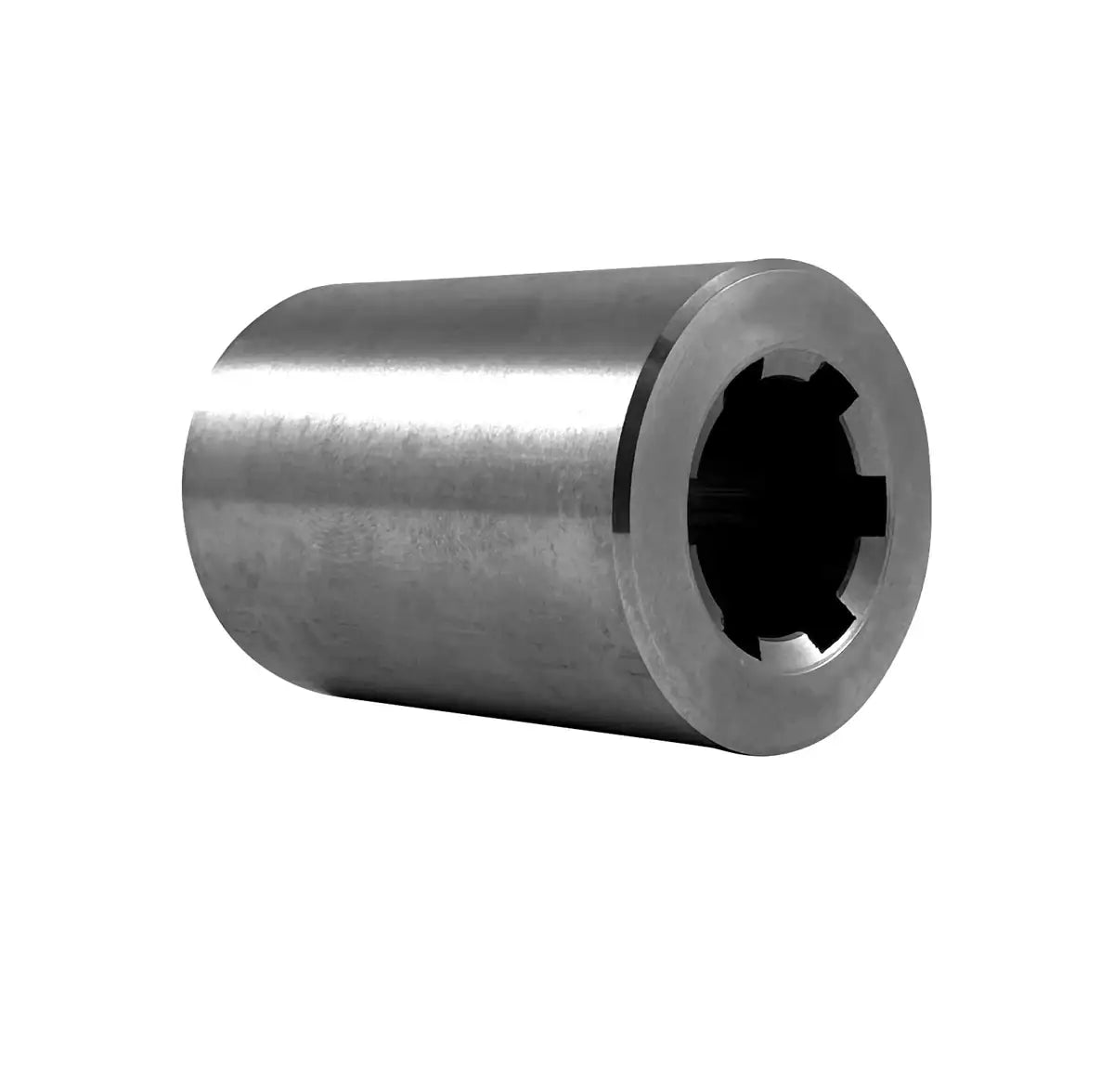

6 Spline Hub for 25mm Splined Shaft - Stainless Steel
6 Spline Hub for 25mm Splined Shaft - Stainless Steel
Note:
Custom Cut to Length Chain Also Available
Product Code: 64899306-HUB
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
Our top-grade 25mm spline hub, with 6 splines, is precisely machined from 303-grade stainless steel, making it ideal for washdown, food-grade, and abrasive environments. Designed to meet DIN ISO 14 standards, this 6-spline hub for 25mm splined shafts ensures excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts together or providing a mounting surface. For more information or to request a quote on our premium stainless steel 25mm splined shaft, please contact our customer service team, and we will be happy to assist you!
25mm Splined Shaft Hub Dimensions
- Part Number: 64899306
- Material: 303 Stainless
- Profile Description: 21 X 25
- Number of Keyways: 6
- Dimension (D): 25mm
- Dimension (d): 21mm
- Dimension (b): 5mm
- Dimension (A): 40mm
- Length: 55mm
- Weight: 0.36KG
Feature
- Precision Made from Stainless Steel
- Made for 25mm Splined Shafting
- Conforms to DIN ISO 14 Standard
- Part Number: 64899306
- Material: 303 Stainless
- Profile Description: 21 X 25
- Number of Keyways: 6
- Dimension (D): 25mm
- Dimension (d): 21mm
- Dimension (b): 5mm
- Dimension (A): 40mm
- Length: 55mm
- Weight: 0.36KG
