A38 V-Belt - A-Section 40" A38 Belt (4L400)
A38 V-Belt - A-Section 40" A38 Belt (4L400)
Note:
Custom Cut to Length Chain Also Available
Product Code: A38-V-BELT
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
When you're in the market for a 40-inch outside-length V-belt, trust in USA Roller Chain's fine stock. Every product offers high-quality detail and materials. The 4L400 belt comes with a cotton-poly blend cover and extra-strength polyester cords. Don't be concerned about dimensions either. USA Roller Chain gives you core specifications, including the 4L400 V-belt angle of 40 degrees, 0.66-inch top width and 0.41-inch thickness. Slippage won't be part of your vocabulary with an A38 belt driving your pulleys to peak efficiency.
Use the A38 4L400 belt in tandem with other belts in your system. They're designed to work as universal replacements in these applications. In fact, you might find yourself replacing each A38 V-belt with our high-quality stock. Remember that quantity discounts are available. Take a look at your current belts, and let us know how you want to improve the setup with our V-belt stock.

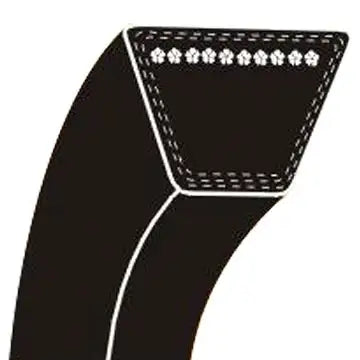

A38 V-Belt Construction:
- Cover - High-quality cotton/ polyester blend
- Compound - Natural rubber/ styrene-butadiene rubber (SBR)
- Cord - High-strength polyester
A38 V-Belt Dimensions
- Belt Size: A38
- Top Width: 0.66"
- Thickness: 0.41"
- Angel: 40 Degrees
- Outside Length: 40"
- Weight: 0.20 LBS
- Interchanges: A-38, 4L400
A38 V-Belt Pulleys
Our A-section v-belt pulleys are made to ARPM standards, are extreme performance parts, and boast premium features at budget-friendly prices. The charts below show the standard pulley sizes, for additional or custom options, please contact us and we will be happy to assist you.AK V-Belt Pulleys:
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Pulley Weight |
|---|---|---|---|---|---|---|---|---|---|
| AK17 | 1.75" | 1.50" | 1.16" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.2 LBS |
| AK20 | 2.00" | 1.80" | 1.46" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.3 LBS |
| AK21 | 2.10" | 1.90" | 1.56" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.4 LBS |
| AK22 | 2.20" | 2.00" | 1.66" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK23 | 2.30" | 2.10" | 1.76" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK25 | 2.50" | 2.30" | 1.96" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK26 | 2.60" | 2.40" | 2.06" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK27 | 2.70" | 2.50" | 2.16" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.6 LBS |
| AK28 | 2.80" | 2.60" | 2.26" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK30 | 3.05" | 2.80" | 2.46" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK32 | 3.25" | 3.00" | 2.66" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK34 | 3.45" | 3.20" | 2.86" | 2 | 21/32" | 15/16" | 7/16" | 5/32" |
0.9 LBS |
| AK39 | 3.75" | 3.50" | 3.16" | 2 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.4 LBS |
| AK41 | 3.95" | 3.70" | 3.36" | 2 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK44 | 4.25" | 4.00" | 3.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK46 | 4.45" | 4.20" | 3.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK49 | 4.75" | 4.50" | 4.16" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.7 LBS |
| AK51 | 4.95" | 4.70" | 4.36" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.7 LBS |
| AK54 | 5.25" | 5.00" | 4.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.8 LBS |
| AK56 | 5.45" | 5.20" | 4.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.9 LBS |
| AK59 | 5.75" | 5.50" | 5.16" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.0 LBS |
| AK61 | 5.95" | 5.70" | 5.36" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.1 LBS |
| AK64 | 6.25" | 6.00" | 5.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.2 LBS |
| AK66 | 6.45" | 6.20" | 5.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.3 LBS |
| AK69 | 6.75" | 6.50" | 6.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.5 LBS |
| AK71 | 6.95" | 6.70" | 6.36" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.8 LBS |
| AK74 | 7.25" | 7.00" | 6.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.4 LBS |
| AK79 | 7.75" | 7.50" | 7.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.0 LBS |
| AK84 | 8.25" | 8.00" | 7.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.8 LBS |
| AK89 | 8.75" | 8.50" | 8.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.3 LBS |
| AK94 | 9.25" | 9.00" | 8.68" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.5 LBS |
| AK99 | 9.75" | 9.50" | 9.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.3 LBS |
| AK104 | 10.25" | 10.00" | 9.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.1 LBS |
| AK109 | 10.75" | 10.50" | 10.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.8 LBS |
| AK114 | 11.25" | 11.00" | 10.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.6 LBS |
| AK124 | 12.25" | 12.00" | 11.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 6.5 LBS |
| AK134 | 13.25" | 13.00" | 12.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 7.5 LBS |
| AK144 | 14.25" | 14.00" | 13.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 8.5 LBS |
| AK154 | 15.25" | 15.00" | 14.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 9.8 LBS |
| AK184 | 18.25" | 18.00" | 17.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- |
12.1 LBS |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Pulley Weight |
|---|---|---|---|---|---|---|---|---|---|
| 2AK20 | 2.00" | 1.80" | 1.46" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.8 LBS |
| 2AK21 | 2.15" | 1.90" | 1.56" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.9 LBS |
| 2AK22 | 2.25" | 2.00" | 1.66" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.9 LBS |
| 2AK23 | 2.35" | 2.10" | 1.76" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.1 LBS |
| 2AK25 | 2.55" | 2.30" | 1.96" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.3 LBS |
| 2AK26 | 2.65" | 2.40" | 2.06" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.4 LBS |
| 2AK27 | 2.75" | 2.50" | 2.16" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.5 LBS |
| 2AK28 | 2.85" | 2.60" | 2.26" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.8 LBS |
| 2AK30 | 3.05" | 2.80" | 2.46" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.8 LBS |
| 2AK32 | 3.25" | 3.00" | 2.66" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 2.1 LBS |
| 2AK34 | 3.45" | 3.20" | 2.86" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 2.3 LBS |
| 2AK39 | 3.75" | 3.50" | 3.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 2.6 LBS |
| 2AK41 | 3.95" | 3.70" | 3.36" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 2.9 LBS |
| 2AK44 | 4.25" | 4.00" | 3.66" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.0 LBS |
| 2AK46 | 4.45" | 4.20" | 3.86" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.1 LBS |
| 2AK49 | 4.75" | 4.50" | 4.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.6 LBS |
| 2AK51 | 4.95" | 4.70" | 4.36" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.8 LBS |
| 2AK54 | 5.25" | 5.00" | 4.66" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.3 LBS |
| 2AK56 | 5.45" | 5.20" | 4.86" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.4 LBS |
| 2AK59 | 5.75 " | 5.50" | 5.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.5 LBS |
| 2AK61 | 5.95" | 5.70" | 5.36" | 3 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.6 LBS |
| 2AK64 | 6.25" | 6.00" | 5.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 4.8 LBS |
| 2AK74 | 7.25" | 7.00" | 6.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 5.6 LBS |
| 2AK84 | 8.25" | 8.00" | 7.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 6.4 LBS |
| 2AK94 | 9.25" | 9.00" | 8.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 7.3 LBS |
| 2AK104 | 10.25" | 10.00" | 9.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 8.1 LBS |
| 2AK114 | 11.25" | 11.00" | 10.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 9.0 LBS |
| 2AK124 | 12.25" | 12.00" | 11.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 9.8 LBS |
| 2AK134 | 13.25" | 13.00" | 12.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 12.3 LBS |
| 2AK144 | 14.25" | 14.00" | 13.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 13.9 LBS |
| 2AK154 | 15.25" | 15.00" | 14.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 14.3 LBS |
| 2AK184 | 18.25" | 18.00" | 17.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" |
17.4 LBS |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (O.L.) | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Dimension (X) | Dimension (G) | Dimension (E) | Pulley Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AK30H | 3.05" | 2.80" | 2.46" | 1 | 1-13/16" | 3/4" | 1-1/4" | 7/8" | -- | 1-3/16" | 7/16" | 3/16" | 0.2 |
| AK32H | 3.25" | 3.00" | 2.66" | 1 | 1-13/16" | 3/4" | 1-1/4" | 7/8" | -- | 1-3/16" | 7/16" | 3/16" | 0.3 |
| AK34H | 3.45" | 3.20" | 2.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.4 |
| AK39H | 3.75" | 3.50" | 3.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK41H | 3.95" | 3.70" | 3.36" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK44H | 4.25" | 4.00" | 3.66" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK46H | 4.45" | 4.20" | 3.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK49H | 4.75" | 4.50" | 4.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.6 |
| AK51H | 4.95" | 4.70" | 4.36" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK54H | 5.25" | 5.00" | 4.66" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK56H | 5.45" | 5.20" | 4.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK59H | 5.75" | 5.50" | 5.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.9 |
| AK61H | 5.95" | 5.70" | 5.36" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.4 |
| AK64H | 6.25" | 6.00" | 5.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK66H | 6.45" | 6.20" | 5.86" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK69H | 6.75" | 6.50" | 6.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK71H | 6.95" | 6.70" | 6.36" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.7 |
| AK74H | 7.25" | 7.00" | 6.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.7 |
| AK79H | 7.75" | 7.50" | 7.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.8 |
| AK84H | 8.25" | 8.00" | 7.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.9 |
| AK89H | 8.75" | 8.50" | 8.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.0 |
| AK94H | 9.25" | 9.00" | 8.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.1 |
| AK99H | 9.75" | 9.50" | 9.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.2 |
| AK104H | 10.25" | 10.00" | 9.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.3 |
| AK109H | 10.75" | 10.50" | 10.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.5 |
| AK114H | 11.25" | 11.00" | 10.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.8 |
| AK124H | 12.25" | 12.00" | 11.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.4 |
| AK134H | 13.25" | 13.00" | 12.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 4.0 |
| AK144H | 14.25" | 14.00" | 13.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.8 |
| AK154H | 15.25" | 15.00" | 14.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 4.3 |
| AK184H | 18.25" | 18.00" | 17.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" |
4.5 |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (O.L.) | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Dimension (X) | Dimension (G) | Dimension (E) | Pulley Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2AK30H | 3.05" | 2.80" | 2.46" | 1 | 2-7/16" | 1-3/8" | 1-1/4" | 7/8" | 15/16" | 7/8" | 7/16" | 3/16" | 1.4 |
| 2AK32H | 3.25" | 3.00" | 2.66" | 1 | 2-7/16" | 1-3/8" | 1-1/4" | 7/8" | 15/16" | 7/8" | 7/16" | 3/16" | 1.7 |
| 2AK34H | 3.45" | 3.20" | 2.86" | 1 | 2" | 1-3/8" | 1-1/4" | 7/16" | 1/2" | 7/8" | 7/16" | 3/16" | 1.8 |
| 2AK39H | 3.75" | 3.50" | 3.16" | 1 | 2" | 1-3/8" | 1-1/4" | 7/16" | 1/2" | 7/8" | 7/16" | 3/16" | 1.8 |
| 2AK41H | 3.95" | 3.70" | 3.36" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 1.9 |
| 2AK44H | 4.25" | 4.00" | 3.66" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 2.4 |
| 2AK46H | 4.45" | 4.20" | 3.86" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 2.5 |
| 2AK49H | 4.75" | 4.50" | 4.16" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.1 |
| 2AK51H | 4.95" | 4.70" | 4.36" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.2 |
| 2AK54H | 5.25" | 5.00" | 4.66" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.4 |
| 2AK56H | 5.45" | 5.20" | 4.86" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.6 |
| 2AK59H | 5.75" | 5.50" | 5.16" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.4 |
| 2AK61H | 5.95" | 5.70" | 5.36" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.3 |
| 2AK64H | 6.25" | 6.00" | 5.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.9 |
| 2AK74H | 7.25" | 7.00" | 6.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 4.9 |
| 2AK84H | 8.25" | 8.00" | 7.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 5.8 |
| 2AK94H | 9.25" | 9.00" | 8.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 6.1 |
| 2AK104H | 10.25" | 10.00" | 9.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 7.7 |
| 2AK114H | 11.25" | 11.00" | 10.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 8.5 |
| 2AK124H | 12.25" | 12.00" | 11.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 9.5 |
| 2AK134H | 13.25" | 13.00" | 12.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 11.9 |
| 2AK144H | 14.25" | 14.00" | 13.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 11.9 |
| 2AK154H | 15.25" | 15.00" | 14.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 13.3 |
| 2AK184H | 18.25" | 18.00" | 17.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 16.8 |
Feature
- Premium V-Belt
- Conforms To ARPM Standard IP 20
- Extremely Durable
- Oil & Heat Resistant
- Belt Size: A38
- Top Width: 0.66"
- Thickness: 0.41"
- Angel: 40 Degrees
- Outside Length: 40"
- Weight: 0.20 LBS
- Interchanges: A-38, 4L400
