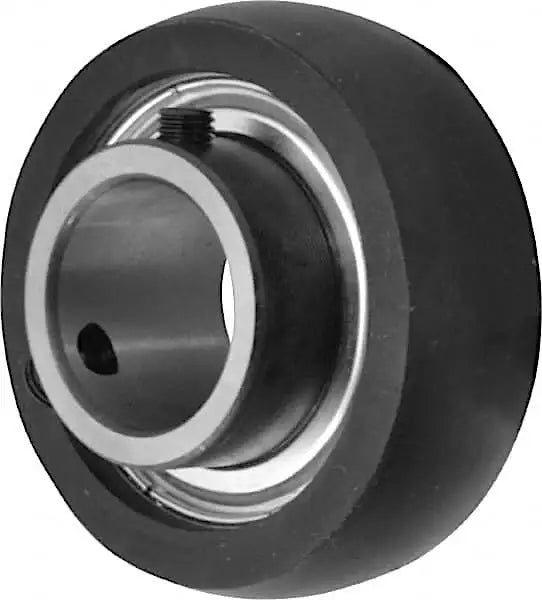

Our vibration-damping SAR204-12 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 3/4" bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The SAR204-12 bearing utilises an eccentric locking collar for securing onto a 3/4" shaft and a static conductive rubber cushion that dampens vibrations. For additional information or to get a quote on SAR204-12 bearings, contact our customer support team, and we will be happy to assist you!
SAR204-12 Bearing Dimensions
- Unit Part #: SAR204-12
- Bearing I.D: 3/4"
- Dimension (D): 2-7/64"
- Dimension (L): 1.220"
- Dimension (A): 11/16"
- Dimension (M): 1-5/8"
- Dimension (d1): 1-5/16"
- Dimension (S1): 59/64"
- Dimension (T): 11/32"
- Bearing Part #: SA204-12
- Rubber Part #: R-5
- Housing Radial Load Rating: 250 LBF
Feature
- High-Performance Insert Bearing
- C3 Precision Rating
- Interchanges With Other Brands
- Vibration Damping
- Unit Part #: SAR204-12
- Bearing I.D: 3/4"
- Dimension (D): 2-7/64"
- Dimension (L): 1.220"
- Dimension (A): 11/16"
- Dimension (M): 1-5/8"
- Dimension (d1): 1-5/16"
- Dimension (S1): 59/64"
- Dimension (T): 11/32"
- Bearing Part #: SA204-12
- Rubber Part #: R-5
- Housing Radial Load Rating: 250 LBF
