HB 78 Drive Chain
HB 78 Drive Chain
Note:
Custom Cut to Length Chain Also Available
Product Code: HB-78-CHAIN
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

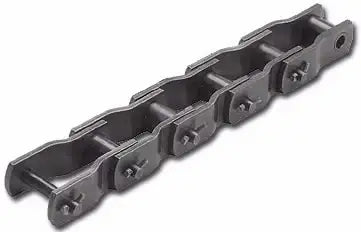

HB 78 Drive Chain is a stainless steel chain that is primarily used in wastewater treatment applications. This HB 78 drive chain is manufactured out of 403-grade stainless steel, making it extremely strong yet highly corrosion resistant. It features an ultimate strength of 24,000 LBS and a rated working load of 3,300 LBS and is a common in-stock item. Something that makes this chain special is the J-cotter pin for easy link removal and field installation/ edits, also the black paint coating on the outside of the chain for an added corrosion barrier. The chain is also directly interchangeable with other manufactures and will run on any 78-series sprocket, so it is easy and economical to switch to or change out.
Besides the HB 78 Drive Chain we offer a full line of sprockets, bearings, drives, shafting, wear components, flights, and skimmer assemblies. USA Roller Chain and Sprockets sets its self apart from the competition by having 100+ years of customer experience, extremely competitive pricing, a wide range of inventory, and rapid fast customer service. To get a quote or for more information on HB 78 drive chain please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Click Here To See Our Other Products!
Besides the HB 78 Drive Chain we offer a full line of sprockets, bearings, drives, shafting, wear components, flights, and skimmer assemblies. USA Roller Chain and Sprockets sets its self apart from the competition by having 100+ years of customer experience, extremely competitive pricing, a wide range of inventory, and rapid fast customer service. To get a quote or for more information on HB 78 drive chain please contact us and we will be happy to assist you.
- Chain Size: HB 78
- Pitch (P): 2.609"
- Links Per 10ft: 46
- Weight: 3.9 LBS/ FT
- Average Ultimate Strength: 24,000 LBS
- Maximum Recommended Working Load: 3,300 LBS
- Barrel Outside Diameter (D): 7/8"
- Barrel Width (W): 1-1/8"
- Pin Diameter (d): 7/16"
- Pin Length (L1): 2-5/8"
- Pin Length (L2): 1-3/16"
- Pin Length (L3): 1-7/16"
- Sidebar Height: 1-1/4"
- Sidebar Thickness (T): 15/64"
Email:
Click Here To See Our Other Products!
Feature
- HB 78 Drive Chain
- Typically In-Stock
- Stainless Steel Material
- Wide Range of Attachments and Sprockets Available
- Commonly Found in Wastewater Applications
- Chain Size: HB 78
- Pitch (P): 2.069"
- Links Per 10ft: 46
- Weight: 3.9 LBS/ FT
- Average Ultimate Strength: 24,000 LBS
- Maximum Recommended Working Load: 3,300 LBS
- Barrel Outside Diameter (D): 7/8"
- Barrel Width (W): 1-1/8"
- Pin Diameter (d): 7/16"
- Pin Length (L1): 2-5/8"
- Pin Length (L2): 1-3/16"
- Pin Length (L3): 1-7/16"
- Sidebar Height: 1-1/4"
- Sidebar Thickness (T): 15/64"
