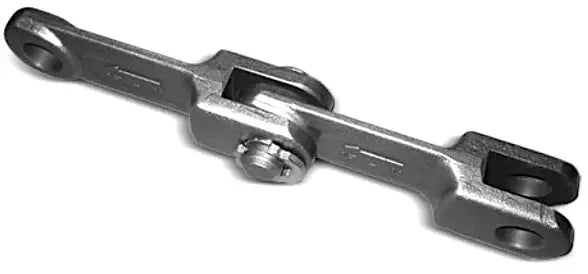

F-22050 Chain - Forged Link Chain

F-22050 Chain - Forged Link Chain

Note: Custom Cut to Length Chain Also Available
Product Code: JKF-22050-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
F-22050 Chain has proven to be one of the most reliable conveying mediums offering a combination of versatility, strength, and abrasion resistance. Typically F22050 chain is found in wastewater applications, food processing, chemical plants, foundries, and even refineries. The high-strength and extreme durability of F-22050 chain make it an ever-growing option for conveying applications. What separates out forge link chain is various heat-treat processes and the material options available.
  • TN _ Manganese Chrome Alloy Steel (20MnCr5) Case hardened
  • CN _ Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
  • CD _ Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered
We also supply F-22050 chain sprockets, pin styles, and attachment types. For more information or to get a quote please contact us and we will be happy to assist you.

F22050 Chain Dimensions

F-22050 Chain | Forged Link Chain

  • Chain Size: F-22050
  • Pitch (P): 220mm
  • Dimension (T): 58mm
  • Dimension (C): 75mm
  • Dimension (S): 28mm
  • Dimension (F): 30mm
  • Dimension (R): 25mm
  • Bolt-Hole Diameter (D): 32mm
  • TN Option Breaking Load: 710 kN
  • CN Option Breaking Load: 760 kN
  • CD Option Breaking Load: 1,260 kN
  • Weight: 19.10 kG/ M

F-22050 Pin Options

F-22050 Chain | Forged Link Chain
Type 22 - Standard Double Circlip
 F-22050 Chain | Forged Link Chain
Type HD/22 - Hardened Pin With Standard Circlip
 F-22050 Chain | Forged Link Chain
Type HD/45/28RP - Headed Pin With Collar and Roll Pin Retention
F-22050 Chain | Forged Link Chain
Type HD/45/28S - Headed Pin With Collar and S Cotter Retention 		F-22050 Chain | Forged Link Chain
Type SN/28S - Antirotation Snub Pin Washer and S Cotter Retention 		F-22050 Chain | Forged Link Chain
Type HD/28S - Headed Pin With Washer and S Cotter Retention
F-22050 Chain Attachments B-Type Flight Attachment for Horizontal Conveying:
F-22050 Chain | Forged Link Chain
T-Type Attachment for Horizontal and Slightly Inclined Conveying:
F-22050 Chain | Forged Link Chain
U Type Attachment for Horizontal and Incline Conveying (with or without blanking plate):
F-22050 Chain | Forged Link Chain
C Type Attachments for Horizontal, Inclined, and Vertical Conveying (with or without blanking plate):
F-22050 Chain | Forged Link Chain
OO Type Attachments for Horizontal and Inclined Conveying (with or without blanking plate):
F-22050 Chain | Forged Link Chain
Note: Please provide required dimensions when requesting attachments.
Additional Wastewater Treatment Products:
  • Sprockets
  • Bearings
  • Gear Boxes/ Reducers
  • Motors/ Drives
  • Pumps & Seals
  • Flights, Flight Boards, & Flight Monitoring
  • Sensors
  • Helical Scum Skimmers
  • Wear Strips, Wear Shoes, Filler Blocks
  • Static Sleeves & Wall Bearings
