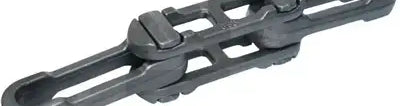

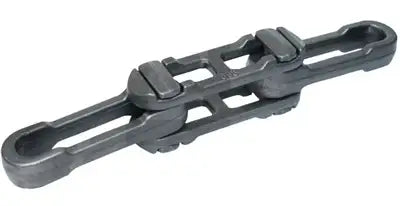

X678 Chain With Threaded Pin Every 4th Pitch

X678 Chain With Threaded Pin Every 4th Pitch

Note: Custom Cut to Length Chain Also Available
Product Code: X678-D1-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
X678 mining chain features high-strength precision threaded pins every 4th pitch and is used in various mining operation applications. Forged from high-grade steels, our X678 chain with extended pins showcases an average ultimate strength of 85,000 LBS. It is highly resistant to abrasion while performing perfectly in even the harshest applications. We typically supply this chain in 10' coils, but alternative lengths can be supplied upon request. Additionally, we offer different extended pin options as well as X678 mining chain sprockets. For more information or to get a quote on our premium X678 mining chain with extended pins, contact our customer service team, and we will be happy to assist you!

X678 Extended Pin Chain Dimensions

X678 Chain With Threaded Pin Every 4th Pitch
  • Chain Size: X-678
  • Pitch (P): 6.031"
  • Average Tensile Strength: LBS
  • Dimension (X1): 0.81"
  • Dimension (X): 1.31"
  • Dimension (D6): 0.88"
  • Dimension (H): 2.00"
  • Dimension (S): 0.50"
  • Dimension (F1): 3.09"
  • Dimension (T): 1.50"
  • Dimension (M): 0.75"
  • Weight: 6.9 LBS/ FT

  • Chain Size: X-678
  • Pitch (P): 6.031"
  • Average Tensile Strength: LBS
  • Dimension (X1): 0.81"
  • Dimension (X): 1.31"
  • Dimension (D6): 0.88"
  • Dimension (H): 2.00"
  • Dimension (S): 0.50"
  • Dimension (F1): 3.09"
  • Dimension (T): 1.50"
  • Dimension (M): 0.75"
  • Weight: 6.9 LBS/ FT
