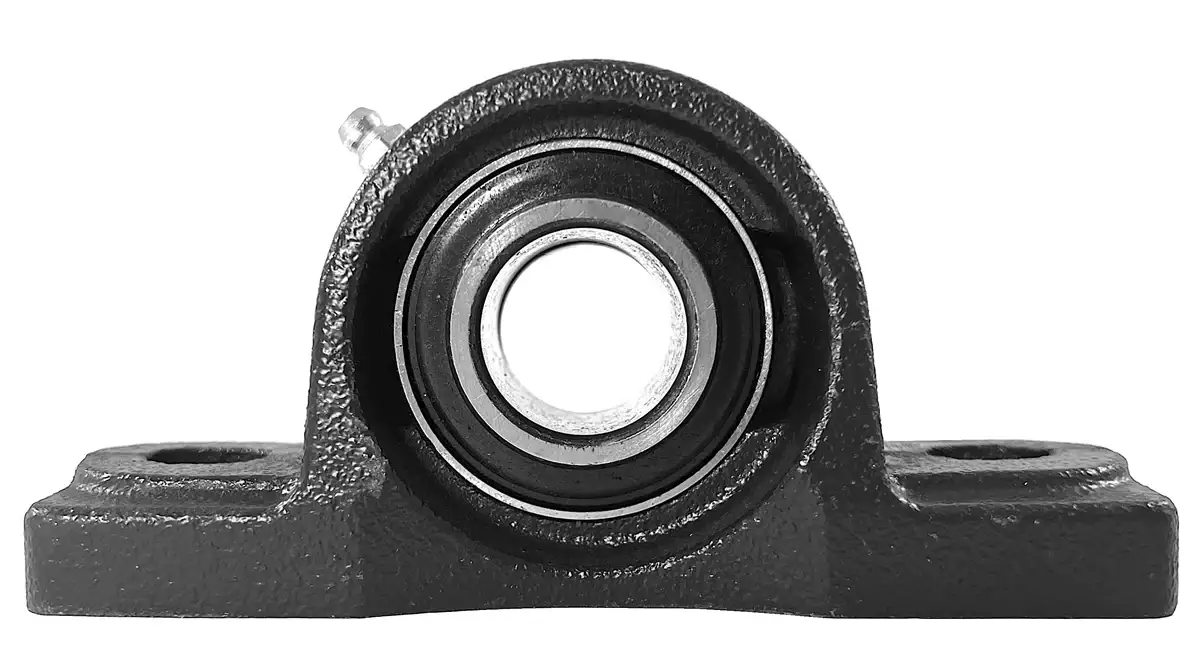

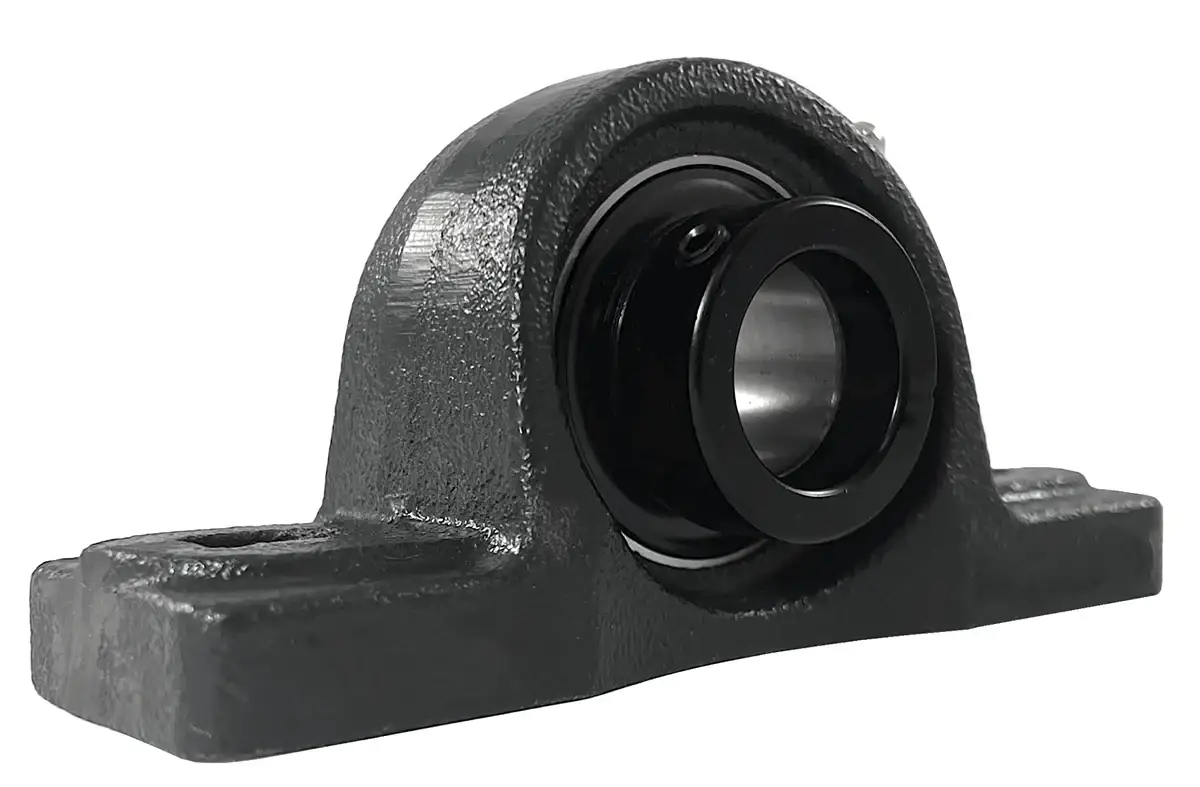

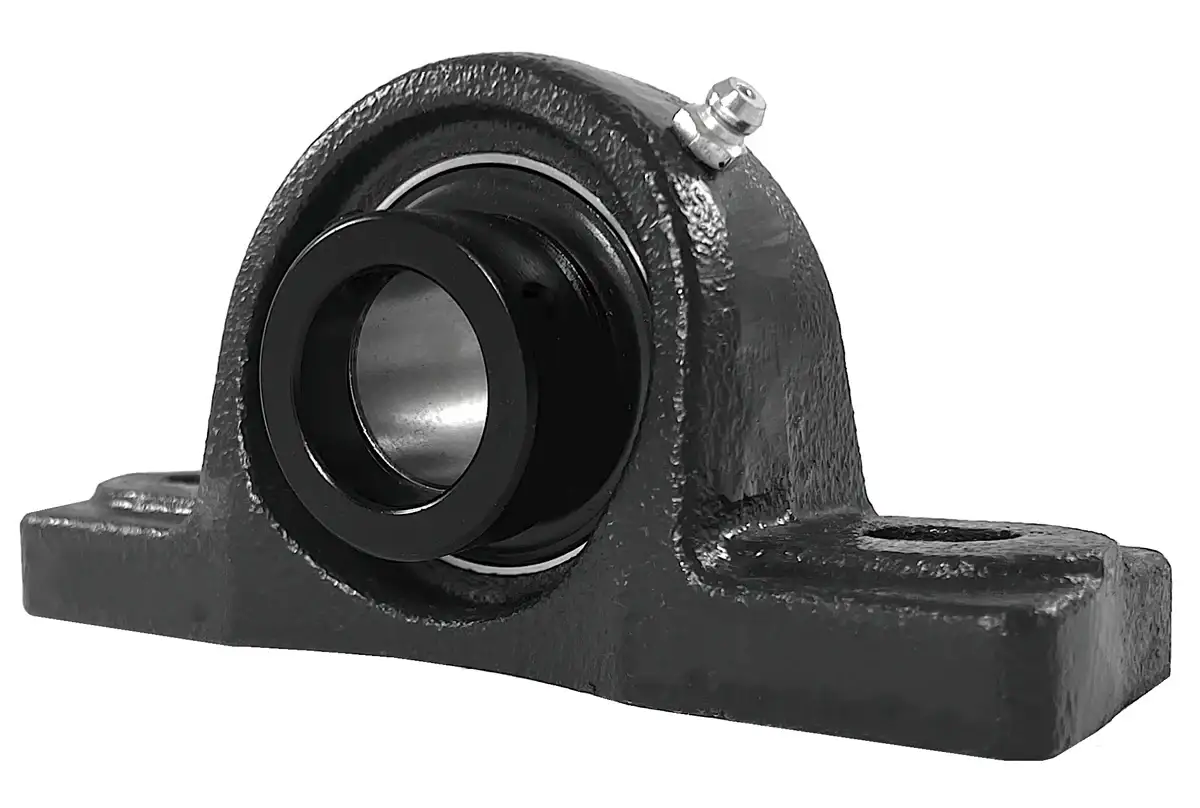

HCAK200 Pillow Block Bearings

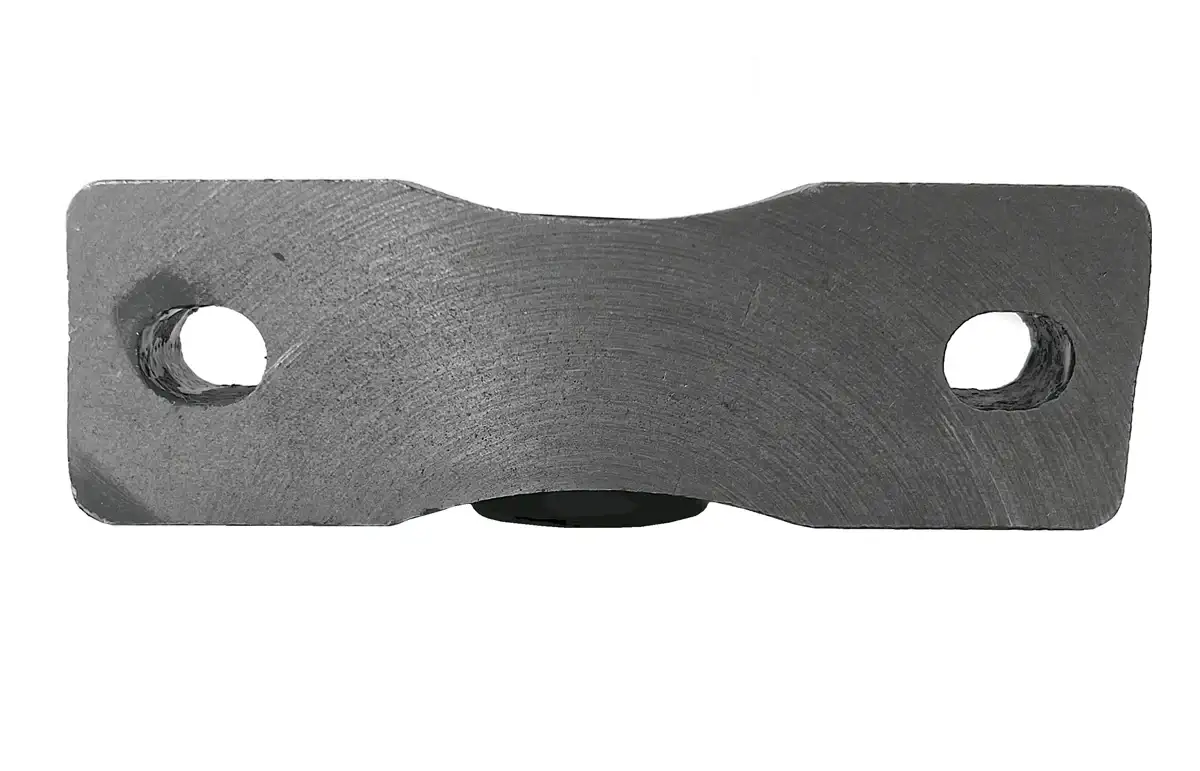

HCAK 200 series bearings are classified as normal-duty 2-bolt pillow block bearings with an eccentric locking collar. We stock these bearings in imperial bore sizes ranging from 1/2" to 3" and metric bore sizes ranging from 12mm to 75mm. HCAK bearing housings are designed for applications with lower shaft heights; these bearings are often called low shaft height pillow block bearings because of the housing design. The bearing has excellent capabilities when gripping onto the associated shaft using an eccentric locking collar device. Our pillow block bearings are manufactured to standard dimensions for direct interchangeability with most brands and utilize premium solid-base housing with precision C3 bearing inserts. For additional information or to get a quote on HCAK 200 series pillow block bearings, contact our customer support team, and we will be happy to assist you!
HCAK Bearing Sizes
| Bearing # | Shaft Dia. | (H) | (A) | (E) | (B) | (S2) | (S1) | (G) | (W) | (Bi) | (N) | (M) |
Bolt Used
|
Dynamic Load Rating | Static Load Rating | Bearing Insert | Housing Number | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCAK201 | 12mm | 27.0mm | 121.0mm | 89.0mm | 35.0mm | 16.0mm | 12.0mm | 13.0mm | 54.0mm | 37.3mm | 13.3mm | 13.9mm | M10 | 9.55 kN | 4.78 kN | HCW 201 | WAK 203 | 1.4 |
| HCAK201-8 | 1/2" | 1.063" | 4.75" | 3.50" | 1.38" | 0.63" | 0.47" | 0.50" | 2.13" | 1.4685" | 0.5472" | 0.5472" | 3/8" | 2,147 | 1,075 | HCW 201-8 | WAK 203 | 1.4 |
| HCAK202 | 15mm | 27.0mm | 121.0mm | 89.0mm | 35.0mm | 16.0mm | 12.0mm | 13.0mm | 54.0mm | 37.3mm | 13.3mm | 13.9mm | M10 | 9.55 kN | 4.78 kN | HCW 202 | WAK 203 | 1.4 |
| HCAK202-10 | 5/8" | 1.063" | 4.75" | 3.50" | 1.38" | 0.63" | 0.47" | 0.50" | 2.13" | 1.4685" | 0.5472" | 0.5472" | 3/8" | 2,147 | 1,075 | HCW 202-10 | WAK 203 | 1.4 |
| HCAK203 | 17mm | 27.0mm | 121.0mm | 89.0mm | 35.0mm | 16.0mm | 12.0mm | 13.0mm | 54.0mm | 37.3mm | 13.3mm | 13.9mm | M10 | 9.55 kN | 4.78 kN | HCW 203 | WAK 203 | 1.4 |
| HCAK204-12 | 3/4" | 1.250" | 5.25" | 3.88" | 1.63" | 0.63" | 0.47" | 0.56" | 2.50" | 1.7205" | 0.6732" | 0.6732" | 3/8" | 2,883 | 1,496 | HC 204-12 | AK 204 | 1.9 |

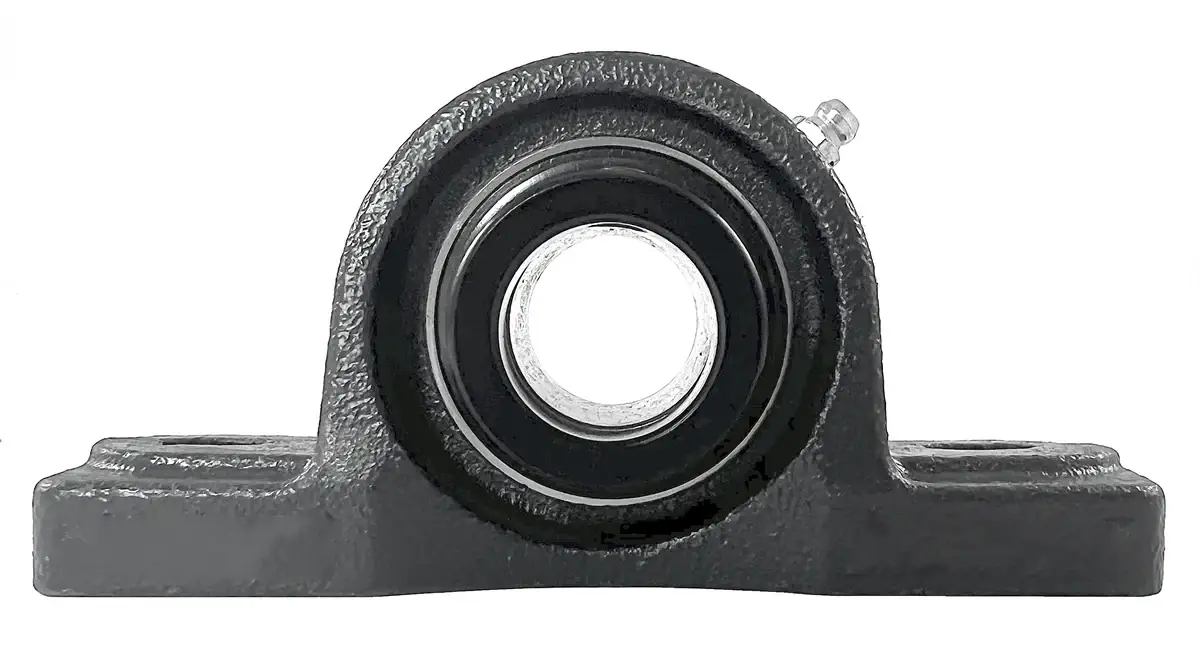

| HCAK204 | 20mm | 33.3mm | 140.0mm | 105.0mm | 45.0mm | 16.0mm | 12.0mm | 16.0mm | 68.0mm | 44.4mm | 17.4mm | 17.5mm | M10 | 14.04 kN | 8.05 kN | HC 204 | AK 204 | 1.9 |
| HCAK205-14 | 7/8" | 1.313" | 5.50" | 4.13" | 1.78" | 0.63" | 0.47" | 0.63" | 2.68" | 1.7480" | 0.6850" | 0.6890" | 3/8" | 3,155 | 1,810 | HC 205-14 | AK 205 | 2.2 |
| HCAK205-15 | 15/16" | 1.313" | 5.50" | 4.13" | 1.78" | 0.63" | 0.47" | 0.63" | 2.68" | 1.7480" | 0.6850" | 0.6850" | 3/8" | 3,155 | 1,810 | HC 205-15 | AK 205 | 2.2 |
| HCAK205 | 25mm | 33.3mm | 140.0mm | 105.0mm | 45.0mm | 16.0mm | 12.0mm | 16.0mm | 68.0mm | 44.4mm | 17.4mm | 17.5mm | M10 | 14.04 kN | 8.05 kN | HC 205 | AK 205 | 2.2 |
| HCAK205-16 | 1" | 1.313" | 5.50" | 4.13" | 1.78" | 0.63" | 0.47" | 0.63" | 2.68" | 1.7480" | 0.6850" | 0.6850" | 3/8" | 3,155 | 1,810 | HC 205-16 | AK 205 | 2.2 |
| HCAK206-17 | 1-1/16" | 1.563" | 6.31" | 4.75" | 1.88" | 0.75" | 0.59" | 0.67" | 3.16" | 1.9055" | 0.7165" | 0.7205" | 1/2" | 4,377 | 2,569 | HC 206-17 | AK 206 | 2.9 |
| HCAK206-18 | 1-1/8" | 1.563" | 6.31" | 4.75" | 1.88" | 0.75" | 0.59" | 0.67" | 3.16" | 1.9055" | 0.7165" | 0.7205" | 1/2" | 4,377 | 2,569 | HC 206-18 | AK 206 | 2.9 |
| HCAK206 | 30mm | 39.7mm | 160.0mm | 121.0mm | 48.0mm | 19.0mm | 15.0mm | 17.0mm | 80.0mm | 48.4mm | 18.2mm | 18.3mm | M14 | 19.47 kN | 2,569 kN | HC 206 | AK 206 | 2.9 |
| HCAK206-19 | 1-3/16" | 1.563" | 6.31" | 4.75" | 1.88" | 0.75" | 0.59" | 0.67" | 3.16" | 1.9055" | 0.7165" | 0.7205" | 1/2" | 4,377 | 2,569 | HC 206-19 | AK 206 | 2.9 |
| HCAK206-20 | 1-1/4" | 1.563" | 6.31" | 4.75" | 1.88" | 0.75" | 0.59" | 0.67" | 3.16" | 1.9055" | 0.7165" | 0.7205" | 1/2" | 4,377 | 2,569 | HC 206-20 | AK 206 | 2.9 |
| HCAK207-20 | 1-1/4" | 1.813" | 6.56" | 5.00" | 1.88" | 0.75" | 0.59" | 0.75" | 3.63" | 2.0118" | 0.7402" | 0.7402" | 1/2" | 5,775 | 3,497 | HC 207-20 | AK 207 | 3.8 |
| HCAK207-21 | 1-5/16" | 1.813" | 6.56" | 5.00" | 1.88" | 0.75" | 0.59" | 0.75" | 3.63" | 2.0118" | 0.7402" | 0.7402" | 1/2" | 5,775 | 3,497 | HC 207-21 | AK 207 | 3.8 |
| HCAK207-22 | 1-3/8" | 1.813" | 6.56" | 5.00" | 1.88" | 0.75" | 0.59" | 0.75" | 3.63" | 2.0118" | 0.7402" | 0.7402" | 1/2" | 5,775 | 3,497 | HC 207-22 | AK 207 | 3.8 |
| HCAK207 | 35mm | 46.0mm | 167.0mm | 127.0mm | 48.0mm | 19.0mm | 15.0mm | 19.0mm | 92.0mm | 51.1mm | 18.8mm | 18.8mm | M14 | 25.69 kN | 15.56 kN | HC 207 | AK 207 | 3.8 |
| HCAK207-23 | 1-7/16" | 1.813" | 6.56" | 5.00" | 1.88" | 0.75" | 0.59" | 0.75" | 3.63" | 2.0118" | 0.7402" | 0.7402" | 1/2" | 5,775 | 3,497 | HC 207-23 | AK 207 | 3.8 |
| HCAK208-24 | 1-1/2" | 1.938" | 7.25" | 5.38" | 2.13" | 0.81" | 0.59" | 0.71" | 3.88" | 2.2165" | 0.8425" | 0.8425" | 1/2" | 6,634 | 4,676 | HC 208-24 | P 208 | 4.8 |
| HCAK208-25 | 1-9/16" | 1.938" | 7.25" | 5.38" | 2.13" | 0.81" | 0.59" | 0.71" | 3.88" | 2.2165" | 0.8425" | 0.8425" | 1/2" | 6,634 | 4,676 | HC 208-25 | P 208 | 4.8 |
| HCAK208 | 40mm | 49.2mm | 184.0mm | 137.0mm | 54.0mm | 21.0mm | 15.0mm | 18.0mm | 98.0mm | 56.3mm | 21.4mm | 21.4mm | M14 | 29.51 kN | 20.80 kN | HC 208 | P 208 | 4.8 |
| HCAK209-26 | 1-5/8" | 2.063" | 7.50" | 5.75" | 2.13" | 0.75" | 0.59" | 0.81" | 4.19" | 2.2165" | 0.8425" | 0.8425" | 1/2" | 7,160 | 4,676 | HC 209-26 | AK 209 | 5.6 |
| HCAK209-27 | 1-11/16" | 2.063" | 7.50" | 5.75" | 2.13" | 0.75" | 0.59" | 0.81" | 4.19" | 2.2165" | 0.8425" | 0.8425" | 1/2" | 7,160 | 4,676 | HC 209-27 | AK 209 | 5.6 |
| HCAK209-28 | 1-3/4" | 2.063" | 7.50" | 5.75" | 2.13" | 0.75" | 0.59" | 0.81" | 4.19" | 2.2165" | 0.8425" | 0.8425" | 1/2" | 7,160 | 4,676 | HC 209-28 | AK 209 | 5.6 |
| HCAK209 | 45mm | 52.4mm | 190.0mm | 146.0mm | 54.0mm | 19.0mm | 15.0mm | 21.0mm | 106.0mm | 56.3mm | 21.4mm | 21.4mm | M14 | 31.85 kN | 20.80 kN | HC 209 | AK 209 | 5.6 |
| HCAK210-30 | 1-7/8" | 2.188" | 8.00" | 6.25" | 2.25" | 0.94" | 0.79" | 0.88" | 4.44" | 2.4685" | 0.9685" | 0.9685" | 5/8" | 7,867 | 5,330 | HC 210-30 | AK 210 | 6.6 |
| HCAK210-31 | 1-15/16" | 2.188" | 8.00" | 6.25" | 2.25" | 0.94" | 0.79" | 0.88" | 4.44" | 2.4685" | 0.9685" | 0.9685" | 5/8" | 7,867 | 5,330 | HC 210-31 | AK 210 | 6.6 |
| HCAK210 | 50mm | 55.6mm | 203.0mm | 159.0mm | 57.0mm | 24.0mm | 20.0mm | 22.0mm | 113.0mm | 62.7mm | 24.6mm | 24.6mm | M16 | 35.00 kN | 23.71 kN | HC 210 | AK 210 | 6.6 |
| HCAK210-32 | 2" | 2.188" | 8.00" | 6.25" | 2.25" | 0.94" | 0.79" | 0.88" | 4.44" | 2.4685" | 0.9685" | 0.9685" | 5/8" | 7,867 | 5,330 | HC 210-32 | AK 210 | 6.6 |
| HCAK211-32 | 2" | 2.437" | 9.13" | 7.16" | 2.38" | 0.94" | 0.79" | 0.98" | 4.94" | 2.8110" | 1.0906" | 1.0945" | 5/8" | 9,743 | 6,608 | HC 211-32 | AK 211 | 8.8 |
| HCAK211-34 | 2-1/8" | 2.437" | 9.13" | 7.16" | 2.38" | 0.94" | 0.79" | 0.98" | 4.94" | 2.8110" | 1.0906" | 1.0945" | 5/8" | 9,743 | 6,608 | HC 211-34 | AK 211 | 8.8 |
| HCAK211 | 55mm | 61.9mm | 232.0mm | 181.0mm | 60.0mm | 24.0mm | 20.0mm | 25.0mm | 125.0mm | 71.4mm | 27.7mm | 27.8mm | M16 | 9,743 kN | 6,608 kN | HC 211 | AK 211 | 8.8 |
| HCAK211-35 | 2-3/16" | 2.437" | 9.13" | 7.16" | 2.38" | 0.94" | 0.79" | 0.98" | 4.94" | 2.8110" | 1.0906" | 1.0945" | 5/8" | 9,743 | 6,608 | HC 211-35 | AK 211 | 8.8 |
| HCAK212-36 | 2-1/4" | 2.688" | 9.50" | 7.50" | 2.50" | 0.94" | 0.79" | 1.13" | 5.44" | 3.0630" | 1.2165" | 1.02205" | 5/8" | 10,720 | 7,516 | HC 212-36 | AK 212 | 10.6 |
| HCAK212 | 60mm | 68.3mm | 241.0mm | 190.0mm | 64.0mm | 24.0mm | 20.0mm | 29.0mm | 238.0mm | 77.8mm | 30.9mm | 31.0mm | M16 | 47.69 kN | 33.43 kN | HC 212 | AK 212 | 10.6 |
| HCAK212-38 | 2-3/8" | 2.688" | 9.50" | 7.50" | 2.50" | 0.94" | 0.79" | 1.13" | 5.44" | 3.0630" | 1.2165" | 1.02205" | 5/8" | 10,720 | 7,516 | HC 212-38 | AK 212 | 10.6 |
| HCAK212-39 | 2-7/16" | 2.688" | 9.50" | 7.50" | 2.50" | 0.94" | 0.79" | 1.13" | 5.44" | 3.0630" | 1.2165" | 1.02205" | 5/8" | 10,720 | 7,516 | HC 212-39 | AK 212 | 10.6 |
| HCAK213-40 | 2-1/2" | 2.688" | 9.75" | 7.63" | 2.75" | 1.13" | 0.88" | 1.06" | 5.56" | 3.3740" | 1.3425" | 1.3425" | 3/4" | 12,859 | 8,994 | HC 213-40 | AK 213 | 14.5 |
| HCAK213 | 65mm | 68.3mm | 248.0mm | 194.0mm | 70.0mm | 29.0mm | 22.0mm | 27.0mm | 141.0mm | 85.7mm | 34.1mm | 34.1mm | M20 | 57.20 kN | 40.01 kN | HC 213 | AK 213 | 14.5 |
| HCAK214-43 | 2-11/16" | 3.000" | 11.25" | 8.00" | 3.25" | 1.63" | 0.81" | 1.25" | 6.06" | 3.3740" | 1.3425" | 1.3425" | 3/4" | 13,981 | 9,869 | HC 214-43 | PX 13 | 16.0 |
| HCAK214-44 | 2-3/4" | 3.000" | 11.25" | 8.00" | 3.25" | 1.63" | 0.81" | 1.25" | 6.06" | 3.3740" | 1.3425" | 1.3425" | 3/4" | 13,981 | 9,869 | HC 214-44 | PX 13 | 16.0 |
| HCAK214 | 70mm | 76.2mm | 286.0mm | 203.0mm | 83.0mm | 41.0mm | 20.4mm | 32.0mm | 154.0mm | 85.7mm | 34.1mm | 34.1mm | M20 | 62.19 kN | 43.90 kN | HC 214 | PX 13 | 16.0 |
| HCAK215-47 | 2-15/16" | 3.313" | 12.00" | 9.50" | 2.94" | 1.25" | 0.88" | 1.25" | 6.50" | 3.6260" | 1.4685" | 1.4685" | 3/4" | 14,974 | 10,757 | HC 215-47 | AK 215 | 20.2 |
| HCAK215 | 75mm | 84.1mm | 304.0mm | 241.0mm | 74.0mm | 32.0mm | 22.0mm | 32.0mm | 165.0mm | 92.1mm | 37.3mm | 37.3mm | M20 | 66.61 kN | 47.85 kN | HC 215 | AK 215 | 20.2 |
| HCAK215-48 | 3" | 3.313" | 12.00" | 9.50" | 2.94" | 1.25" | 0.88" | 1.25" | 6.50" | 3.6260" | 1.4685" | 1.4685" | 3/4" | 14,974 | 10,757 | HC 215-48 | AK 215 | 20.2 |
