Stamped Steel Flange Bearings
Stamped steel flange bearings are designed for applications where the shaft is mounted perpendicular to the bearing mounting surface. Our two-piece stamped steel flange bearing housings are constructed of high-quality steel that is zinc plated for corrosion protection. The stamped steel housing houses a C3 precision insert bearing that utilizes shields or rubber seals for bearing protection. We also offer an insert bearing with a rubber outer piece that creates a vibration dampening flange bearing. Standard stamped steel flange bearings are available in 2-bolt, 3-bolt, and 4-bolt options for the ability to be used in a wide range of applications. For additional information or to get a quote, contact our customer service team, and we will be happy to assist you!2-Bolt Stamped Steel Bearings

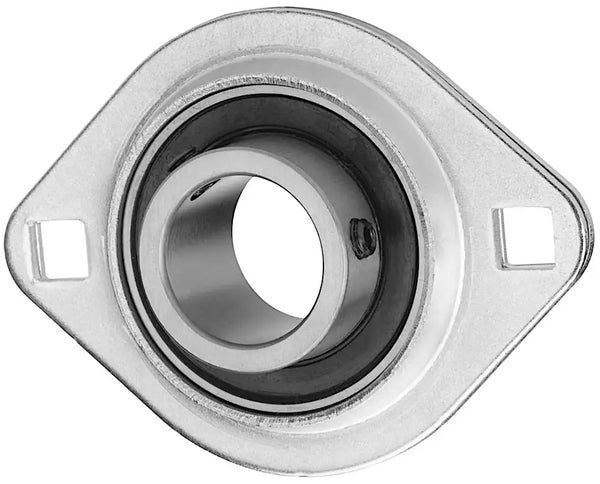

Two-bolt flange bearings utilize two mounting points and are optimal for space-restricted applications or applications requiring mounting position flexibility. The charts below show our standard 2-bolt stamped steel bearing sizes; you need to contact our customer care team if you don't see the specific bearing.
SBPFL200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize two set screws for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SBPFL200 bearing sizes.
SBPFL200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (b) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPFL201-8 | 1/2" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 2-21/64" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB201-8 | PFL203 | 0.42 |
| SBPFL202-10 | 5/8" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 2-21/64" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB202-10 | PFL203 | 0.42 |
| SBPFL204 | 20mm | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-5/8" | 2-7/32" | 0.954" | 0.276" | 5/16" | SB204 | PFL204 | 0.53 |
| SBPFL204-12 | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-5/8" | 2-7/32" | 0.954" | 0.276" | 5/16" | SB204-12 | PFL204 | 0.53 |
| SBPFL205 | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.063" | 0.295" | 5/16" | SB205 | PFL205 | 0.62 |
| SBPFL205-14 | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.063" | 0.295" | 5/16" | SB205-14 | PFL205 | 0.62 |
| SBPFL205-15 | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.063" | 0.295" | 5/16" | SB205-15 | PFL205 | 0.62 |
| SBPFL205-16 | 1" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.063" | 0.295" | 5/16" | SB205-16 | PFL205 | 0.62 |
| SBPFL206 | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206 | PFL206 | 0.84 |
| SBPFL206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-17 | PFL206 | 0.84 |
| SBPFL206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-18 | PFL206 | 0.84 |
| SBPFL206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-19 | PFL206 | 0.84 |
| SBPFL206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-20 | PFL206 | 0.84 |
| SBPFL207 | 35mm | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207 | PFL207 | 0.99 |
| SBPFL207-20 | 1-1/4" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-20 | PFL207 | 0.99 |
| SBPFL207-21 | 1-5/16" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-21 | PFL207 | 0.99 |
| SBPFL207-22 | 1-3/8" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-22 | PFL207 | 0.99 |
| SBPFL207-23 | 1-7/16" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-23 | PFL207 | 0.99 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (D) | (E) | (F) | (H) | (J) | Bolt Size | Radial Load Rating (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PFL203 | 1/2", 5/8" | 40mm | 2-5/16" | 3-3/16" | 2-1/2" | 9/32" | 9/32" | 1-15/16" | 0.075" | 1/4" | 600 |
| PFL204 | 3/4" | 47mm | 2-5/8" | 3-9/16" | 2-13/16" | 5/16" | 11/32" | 2-3/16" | 0.083" | 5/16" | 700 |
| PFL205 | 7/8" to 1" | 52mm | 2-51/64" | 3-3/4" | 3" | 11/32" | 11/32" | 2-3/8" | 0.083" | 5/16" | 800 |
| PFL206 | 1-1/16" to 1-1/4" | 62mm |
3-5/16"
|
4-7/16" | 3-9/16" | 11/32" | 13/32" | 2-13/16" | 0.104" | 3/8" | 1,100 |
| PFL207 | 1-1/4" to 1-7/16" | 72mm | 3-11/16" | 4-15/16" | 3-15/16" | 7/16" | 13/32" | 3-3/16" | 0.104" | 3/8" | 1,400 |
SAPFL200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SAPFL200 bearing sizes.
SAPFL200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (b) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPFL201-8 | 1/2" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 2-21/64" | 1-59/64" | 1.126" | 0.236" | 1-1/4" | 1/4" | SA201-8 | PFL203 | 0.44 |
| SAPFL202-10 | 5/8" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 2-21/64" | 1-59/64" | 1.126" | 0.236" | 1-1/4" | 1/4" | SA202-10 | PFL203 | 0.44 |
| SAPFL204 | 20mm | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-5/8" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204 | PFL204 | 0.66 |
| SAPFL204-12 | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-5/8" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204-12 | PFL204 | 0.66 |
| SAPFL205 | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205 | PFL205 | 0.66 |
| SAPFL205-14 | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-14 | PFL205 | 0.66 |
| SAPFL205-15 | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-15 | PFL205 | 0.66 |
| SAPFL205-16 | 1" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-16 | PFL205 | 0.66 |
| SAPFL206 | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206 | PFL206 | 1.10 |
| SAPFL206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-17 | PFL206 | 1.10 |
| SAPFL206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-18 | PFL206 | 1.10 |
| SAPFL206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-19 | PFL206 | 1.10 |
| SAPFL206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-20 | PFL206 | 1.10 |
| SAPFL207 | 35mm | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207 | PFL207 | 1.54 |
| SAPFL207-20 | 1-1/4" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-20 | PFL207 | 1.54 |
| SAPFL207-21 | 1-5/16" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-21 | PFL207 | 1.54 |
| SAPFL207-22 | 1-3/8" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-22 | PFL207 | 1.54 |
| SAPFL207-23 | 1-7/16" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-23 | PFL207 | 1.54 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (D) | (E) | (F) | (H) | (J) | Bolt Size | Radial Load Rating (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PFL203 | 1/2", 5/8" | 40mm | 2-5/16" | 3-3/16" | 2-1/2" | 9/32" | 9/32" | 1-15/16" | 0.075" | 1/4" | 600 |
| PFL204 | 3/4" | 47mm | 2-5/8" | 3-9/16" | 2-13/16" | 5/16" | 11/32" | 2-3/16" | 0.083" | 5/16" | 700 |
| PFL205 | 7/8" to 1" | 52mm | 2-51/64" | 3-3/4" | 3" | 11/32" | 11/32" | 2-3/8" | 0.083" | 5/16" | 800 |
| PFL206 | 1-1/16" to 1-1/4" | 62mm |
3-5/16"
|
4-7/16" | 3-9/16" | 11/32" | 13/32" | 2-13/16" | 0.104" | 3/8" | 1,100 |
| PFL207 | 1-1/4" to 1-7/16" | 72mm | 3-11/16" | 4-15/16" | 3-15/16" | 7/16" | 13/32" | 3-3/16" | 0.104" | 3/8" | 1,400 |
CSBMFM200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize two set screws for securing onto a shaft. The unique design of the housing allows for flush mounting in applications. CSBMFM200 bearings bore size ranges from 1/2" to 1-1/4"; the below size chart shows standard CSBMFM200 bearing sizes.
CSBMFM200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (s) | (b) | (Bi) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|
| CSB40MFM201-8 | 1/2" | 3-3/16" | 2-33/64" | 9/32" | 2-21/64" | 0.875" | 1/4" | CSB201-8 | 40-2-MFM | 0.44 |
| CSB40MFM202-10 | 5/8" | 3-3/16" | 2-33/64" | 9/32" | 2-21/64" | 0.875" | 1/4" | CSB202-10 | 40-2-MFM | 0.44 |
| CSB47MFM204 | 20mm | 3-35/64" | 2-51/64" | 11/32" | 2-5/8" | 0.969" | 5/16" | CSB204 | 47-2-MFM | 0.66 |
| CSB47MFM204-12 | 3/4" | 3-35/64" | 2-51/64" | 11/32" | 2-5/8" | 0.969" | 5/16" | CSB204-12 | 47-2-MFM | 0.66 |
| CSB52MFM205 | 25mm | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.063" | 5/16" | CSB205 | 52-2-MFM | 0.66 |
| CSB52MFM205-14 | 7/8" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.063" | 5/16" | CSB205-14 | 52-2-MFM | 0.66 |
| CSB52MFM205-15 | 15/16" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.063" | 5/16" | CSB205-15 | 52-2-MFM | 0.66 |
| CSB52MFM205-16 | 1" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.063" | 5/16" | CSB205-16 | 52-2-MFM | 0.66 |
| CSB62MFM206 | 30mm | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.188" | 3/8" | CSB206 | 62-2-MFM | 1.10 |
| CSB62MFM206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.188" | 3/8" | CSB206-17 | 62-2-MFM | 1.10 |
| CSB62MFM206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.188" | 3/8" | CSB206-18 | 62-2-MFM | 1.10 |
| CSB62MFM206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.188" | 3/8" | CSB206-19 | 62-2-MFM | 1.10 |
| CSB62MFM206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.188" | 3/8" | CSB206-20 | 62-2-MFM | 1.10 |
| Housing Part # | Shaft Sizes | (E) | (F) | (G) | (H) | (I) |
|---|---|---|---|---|---|---|
| 40-2-MFM | 1/2", 5/8" | 9/32" | 1.5748" | 0.512" | 0.074" | 1.250" |
| 47-2-MFM | 3/4" | 11/32" | 1.8504" | 0.590" | 0.074" | 1.428" |
| 52-2-MFM | 7/8", 15/16", 1" | 11/32" | 2.0472" | 0.590" | 0.074" | 1.625" |
| 62-2-MFM | 1-1/16", 1-1/8", 1-3/16", 1-1/4" | 13/32" | 2.4409" |
0.709"
|
0.089" | 2.018" |
CSAMFM200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. The unique design of the housing allows for flush mounting in applications. CSAMFM200 bearings bore size ranges from 1/2" to 1-1/4"; the below size chart shows standard CSAMFM200 bearing sizes.
CSAMFM200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (s) | (b) | (L) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CSA40MFM201-8 | 1/2" | 3-3/16" | 2-33/64" | 9/32" | 2-21/64" | 1.126" | 1-1/8" | 1/4" | CSA201-8 | 40-2-MFM | 0.44 |
| CSA40MFM202-10 | 5/8" | 3-3/16" | 2-33/64" | 9/32" | 2-21/64" | 1.126" | 1-1/8" | 1/4" | CSA202-10 | 40-2-MFM | 0.44 |
| CSA47MFM204 | 20mm | 3-35/64" | 2-51/64" | 11/32" | 2-5/8" | 1.220" | 1-1/4" | 5/16" | CSA204 | 47-2-MFM | 0.66 |
| CSA47MFM204-12 | 3/4" | 3-35/64" | 2-51/64" | 11/32" | 2-5/8" | 1.220" | 1-1/4" | 5/16" | CSA204-12 | 47-2-MFM | 0.66 |
| CSA52MFM205 | 25mm | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.220" | 1-1/2" | 5/16" | CSA205 | 52-2-MFM | 0.66 |
| CSA52MFM205-14 | 7/8" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.220" | 1-1/2" | 5/16" | CSA205-14 | 52-2-MFM | 0.66 |
| CSA52MFM205-15 | 15/16" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.220" | 1-1/2" | 5/16" | CSA205-15 | 52-2-MFM | 0.66 |
| CSA52MFM205-16 | 1" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.220" | 1-1/2" | 5/16" | CSA205-16 | 52-2-MFM | 0.66 |
| CSA62MFM206 | 30mm | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.406" | 1-3/4" | 3/8" | CSA206 | 62-2-MFM | 1.10 |
| CSA62MFM206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.406" | 1-3/4" | 3/8" | CSA206-17 | 62-2-MFM | 1.10 |
| CSA62MFM206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.406" | 1-3/4" | 3/8" | CSA206-18 | 62-2-MFM | 1.10 |
| CSA62MFM206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.406" | 1-3/4" | 3/8" | CSA206-19 | 62-2-MFM | 1.10 |
| CSA62MFM206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.406" | 1-3/4" | 3/8" | CSA206-20 | 62-2-MFM | 1.10 |
| Housing Part # | Shaft Sizes | (E) | (F) | (G) | (H) | (I) |
|---|---|---|---|---|---|---|
| 40-2-MFM | 1/2", 5/8" | 9/32" | 1.5748" | 0.512" | 0.074" | 1.250" |
| 47-2-MFM | 3/4" | 11/32" | 1.8504" | 0.590" | 0.074" | 1.428" |
| 52-2-MFM | 7/8", 15/16", 1" | 11/32" | 2.0472" | 0.590" | 0.074" | 1.625" |
| 62-2-MFM | 1-1/16", 1-1/8", 1-3/16", 1-1/4" | 13/32" | 2.4409" |
0.709"
|
0.089" | 2.018" |
CSBMFMR200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize two set screws for securing onto a shaft.
They also feature a rubber cushion/ boot that goes on the outside of the insert bearing to make the bearings vibration-damping. The unique design of the housing allows for flush mounting in applications. CSBMFMR200 bearings bore size ranges from 1/2" to 1"; the below size chart shows standard CSBMFMR200 bearing sizes.
| Bearing Part # | Bearing I.D. | (a) | (e) | (b) | (D) | (E) | (Bi) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CSB728MFM201-8 | 1/2" | 4" | 3" | 2" | 29/64" | 3/4" | 0.875" | 1/4" | CSB201-8 | 728-2-MFM | 0.30 |
| CSB728MFM202-10 | 5/8" | 4" | 3" | 2" | 29/64" | 3/4" | 0.875" | 1/4" | CSB202-10 | 728-2-MFM | 0.30 |
| CSB729MFM204 | 20mm | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 0.969" | 5/16" | CSB204 | 729-2-MFM | 0.50 |
| CSB729MFM204-12 | 3/4" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 0.969" | 5/16" | CSB204-12 | 729-2-MFM | 0.50 |
| CSB730MFM205 | 25mm | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.063" | 5/16" | CSB205 | 730-2-MFM | 0.50 |
| CSB730MFM205-14 | 7/8" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.063" | 5/16" | CSB205-14 | 730-2-MFM | 0.50 |
| CSB730MFM205-15 | 15/16" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.063" | 5/16" | CSB205-15 | 730-2-MFM | 0.50 |
| CSB730MFM205-16 | 1" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.063" | 5/16" | CSB205-16 | 730-2-MFM | 0.50 |
| Housing Part # | Shaft Sizes | (F) | (G) | (H) |
|---|---|---|---|---|
| 728-2-MFM | 1/2", 5/8" | 1.5748" | 0.512" | 0.074" |
| 729-2-MFM | 3/4" | 1.8504" | 0.590" | 0.074" |
| 730-2-MFM | 7/8", 15/16", 1" | 2.0472" | 0.590" | 0.074" |
CSAMFMR200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. They also feature a rubber cushion/ boot that goes on the outside of the insert bearing to make the bearings vibration-damping. The unique design of the housing allows for flush mounting in applications. CSAMFMR200 bearings bore size ranges from 1/2" to 1"; the below size chart shows standard CSAMFMR200 bearing sizes.
CSAMFMR200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (b) | (D) | (E) | (L) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CSA728MFM201-8 | 1/2" | 4" | 3" | 2" | 29/64" | 3/4" | 1.126" | 1/4" | CSA201-8 | 728-2-MFM | 0.30 |
| CSA728MFM202-10 | 5/8" | 4" | 3" | 2" | 29/64" | 3/4" | 1.126" | 1/4" | CSA202-10 | 728-2-MFM | 0.30 |
| CSA729MFM204 | 20mm | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA204 | 729-2-MFM | 0.50 |
| CSA729MFM204-12 | 3/4" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA204-12 | 729-2-MFM | 0.50 |
| CSA730MFM205 | 25mm | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA205 | 730-2-MFM | 0.50 |
| CSA730MFM205-14 | 7/8" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA205-14 | 730-2-MFM | 0.50 |
| CSA730MFM205-15 | 15/16" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA205-15 | 730-2-MFM | 0.50 |
| CSA730MFM205-16 | 1" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA205-16 | 730-2-MFM | 0.50 |
| Housing Part # | Shaft Sizes | (F) | (G) | (H) |
|---|---|---|---|---|
| 728-2-MFM | 1/2", 5/8" | 1.5748" | 0.512" | 0.074" |
| 729-2-MFM | 3/4" | 1.8504" | 0.590" | 0.074" |
| 730-2-MFM | 7/8", 15/16", 1" | 2.0472" | 0.590" | 0.074" |
3-Bolt Stamped Steel Bearings

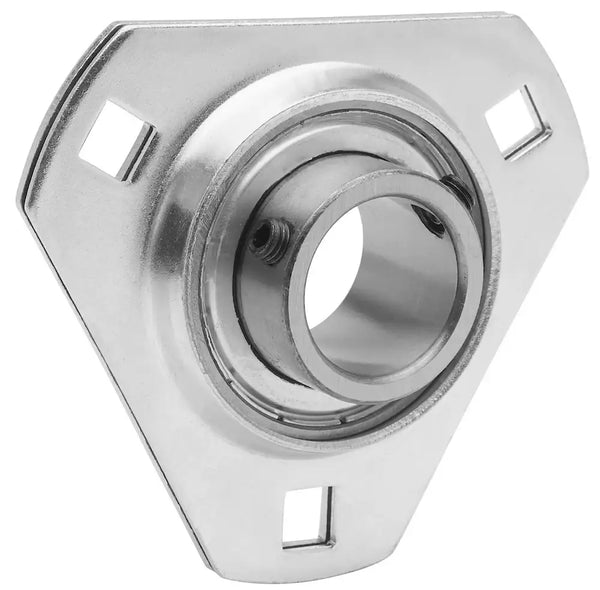

3-Bolt stamped steel bearings are supplied in two different housing styles; triangle flange and round flange. These bearings utilize three different mounting holes (bolt holes) for securing onto a surface and, by design, offer a wide range of mounting positions and fantastic stability.

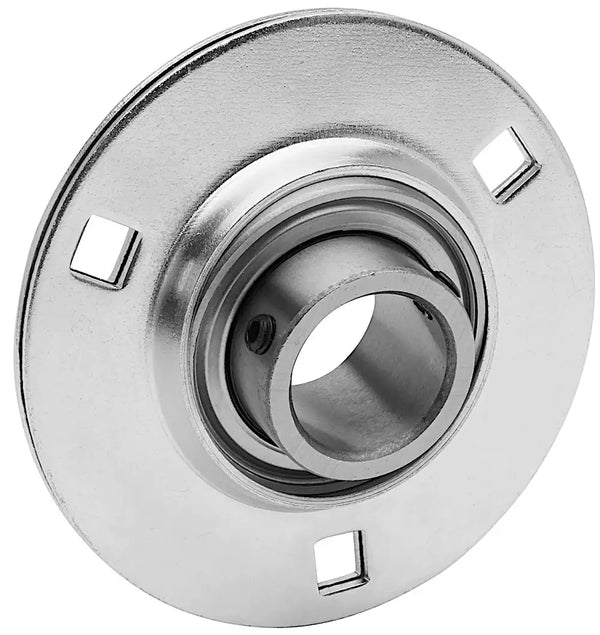

SBPF200 3-bolt stamped steel flange bearings are designed for light-duty applications and utilize two set screws for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SBPF200 bearing sizes.
SBPF200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPF201-8 | 1/2" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB201-8 | PF203 | 0.66 |
| SBPF202-10 | 5/8" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB202-10 | PF203 | 0.66 |
| SBPF204 | 20mm |
3-35/64"
|
2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204 | PF204 | 0.73 |
| SBPF204-12 | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204-12 | PF204 | 0.73 |
| SBPF205 | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205 | PF205 | 0.84 |
| SBPF205-14 | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-14 | PF205 | 0.84 |
| SBPF205-15 | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-15 | PF205 | 0.84 |
| SBPF205-16 |
1"
|
3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-16 | PF205 | 0.84 |
| SBPF206 | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206 | PF206 | 1.41 |
| SBPF206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-17 | PF206 | 1.41 |
| SBPF206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-18 | PF206 | 1.41 |
| SBPF206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-19 | PF206 | 1.41 |
| SBPF206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-20 | PF206 | 1.41 |
| SBPF207 | 35mm | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207 | PF207 | 1.80 |
| SBPF207-20 | 1-1/4" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-20 | PF207 | 1.80 |
| SBPF207-21 | 1-5/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-21 | PF207 | 1.80 |
| SBPF207-22 | 1-3/8" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-22 | PF207 | 1.80 |
| SBPF207-23 | 1-7/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-23 | PF207 | 1.80 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width |
|---|---|---|---|---|---|---|---|---|
| PF203 | 1/2" to 5/8" | 1-15/16" | 3-3/16" | 9/16" | 0.075" | 1/4" | 2-1/2" | 9/32" |
| PF204 | 3/4" | 2-3/16" | 3-9/16" | 5/8" | 0.083" | 5/16" | 2-13/16" | 11/32" |
| PF205 | 7/8" to 1" | 2-3/8" | 3-3/4" | 11/16" | 0.083" | 5/16" | 3" | 11/32" |
| PF206 | 1-1/16" to 1-1/4" | 2-13/16" | 4-7/16" | 11/16" | 0.104" | 3/8" | 3-9/16" | 13/32" |
| PF207 | 1-1/4" to 1-7/16" | 3-3/16" | 4-13/16" | 3/4" | 0.104" | 3/8" | 3-15/16" | 13/32" |
SAPF200 3-bolt stamped steel flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SAPF200 bearing sizes.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPF201-8 | 1/2" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 1-59/64" | 1.126" | 0.236" | 1-1/8" | 1/4" | SA201-8 | PF203 | 0.68 |
| SAPF202-10 | 5/8" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 1-59/64" | 1.126" | 0.236" | 1-1/8" | 1/4" | SA202-10 | PF203 | 0.68 |
| SAPF204 | 20mm | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204 | PF204 | 0.77 |
| SAPF204-12 | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204-12 | PF204 | 0.77 |
| SAPF205 | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205 | PF205 | 0.88 |
| SAPF205-14 | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-14 | PF205 | 0.88 |
| SAPF205-15 | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-15 | PF205 | 0.88 |
| SAPF205-16 | 1" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-16 | PF205 | 0.88 |
| SAPF206 | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206 | PF206 | 1.50 |
| SAPF206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-17 | PF206 | 1.50 |
| SAPF206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-18 | PF206 | 1.50 |
| SAPF206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-19 | PF206 | 1.50 |
| SAPF206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-20 | PF206 | 1.50 |
| SAPF207 | 35mm | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207 | PF207 | 1.85 |
| SAPF207-20 | 1-1/4" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-20 | PF207 | 1.85 |
| SAPF207-21 | 1-5/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-21 | PF207 | 1.85 |
| SAPF207-22 | 1-3/8" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-22 | PF207 | 1.85 |
| SAPF207-23 | 1-7/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-23 | PF207 | 1.85 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width |
|---|---|---|---|---|---|---|---|---|
| PF203 | 1/2" to 5/8" | 1-15/16" | 3-3/16" | 9/16" | 0.075" | 1/4" | 2-1/2" | 9/32" |
| PF204 | 3/4" | 2-3/16" | 3-9/16" | 5/8" | 0.083" | 5/16" | 2-13/16" | 11/32" |
| PF205 | 7/8" to 1" | 2-3/8" | 3-3/4" | 11/16" | 0.083" | 5/16" | 3" | 11/32" |
| PF206 | 1-1/16" to 1-1/4" | 2-13/16" | 4-7/16" | 11/16" | 0.104" | 3/8" | 3-9/16" | 13/32" |
| PF207 | 1-1/4" to 1-7/16" | 3-3/16" | 4-13/16" | 3/4" | 0.104" | 3/8" | 3-15/16" | 13/32" |
SBPFG200 3-bolt stamped steel flange bearings are designed for light-duty applications and utilize two set screws for securing onto a shaft and feature a grease zerk for adding lube/ grease. Their bore size ranges from 20mm to 1-7/16"; the below size chart shows standard SBPFG200 bearing sizes.
SBPFG200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPF204G | 20mm | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204 | PF204G | 0.65 |
| SBPF204-12G | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204-12 | PF204G | 0.65 |
| SBPF205G | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205 | PF205G | 0.75 |
| SBPF205-14G | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-14 | PF205G | 0.75 |
| SBPF205-15G | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-15 | PF205G | 0.75 |
| SBPF205-16G | 1" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-16 | PF205G | 0.75 |
| SBPF206G | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206 | PF206G | 1.20 |
| SBPF206-17G | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-17 | PF206G | 1.20 |
| SBPF206-18G | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-18 | PF206G | 1.20 |
| SBPF206-19G |
1-3/16"
|
4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-19 | PF206G | 1.20 |
| SBPF206-20G | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-20 | PF206G | 1.20 |
| SBPF207G | 35mm | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207 | PF207G | 1.45 |
| SBPF207-20G | 1-1/4" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-20 | PF207G | 1.45 |
| SBPF207-21G | 1-5/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-21 | PF207G | 1.45 |
| SBPF207-22G | 1-3/8" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-22 | PF207G | 1.45 |
| SBPF207-23G | 1-7/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-23 | PF207G | 1.45 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) |
(E)
|
|---|---|---|---|---|---|---|---|---|
| PF204G | 3/4" | 2-3/16" | 3-9/16" | 5/8" | 0.083" | 5/16" | 2-13/16" | 11/32" |
| PF205G | 13/16" to 1" | 2-3/8" | 3-3/4" | 11/16" | 0.083" | 5/16" | 3" | 11/32" |
| PF206G | 1-1/16" to 1-1/4" | 2-13/16" | 4-7/16" | 3/4" | 0.104" | 3/8" | 3-9/16" | 13/32" |
| PF207G | 1-1/4" to 1-7/16" | 3-3/16" | 4-13/16" | 7/8" | 0.134" | 3/8" | 3-15/16" | 13/32" |
SAPFG200 3-bolt stamped steel flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft and feature a grease zerk for adding lube/ grease. Their bore size ranges from 20mm to 1-7/16"; the chart below shows standard SAPFG200 bearing sizes.
SAPFG200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPF204G | 20mm | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204 | PF204G | 0.75 |
| SAPF204-12G | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204-12 | PF204G | 0.75 |
| SAPF205G | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205 | PF205G | 0.85 |
| SAPF205-14G | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-14 | PF205G | 0.85 |
| SAPF205-15G | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-15 | PF205G | 0.85 |
| SAPF205-16G | 1" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-16 | PF205G | 0.85 |
| SAPF206G | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206 | PF206G | 1.30 |
| SAPF206-17G | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-17 | PF206G | 1.30 |
| SAPF206-18G | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-18 | PF206G | 1.30 |
| SAPF206-19G | 1-3/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-19 | PF206G | 1.30 |
| SAPF206-20G | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-20 | PF206G | 1.30 |
| SAPF207G | 35mm | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207 | PF207G | 1.70 |
| SAPF207-20G | 1-1/4" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-20 | PF207G | 1.70 |
| SAPF207-21G | 1-5/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-21 | PF207G | 1.70 |
| SAPF207-22G | 1-3/8" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-22 | PF207G | 1.70 |
| SAPF207-23G | 1-7/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-23 | PF207G | 1.70 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) |
(E)
|
|---|---|---|---|---|---|---|---|---|
| PF204G | 3/4" | 2-3/16" | 3-9/16" | 5/8" | 0.083" | 5/16" | 2-13/16" | 11/32" |
| PF205G | 13/16" to 1" | 2-3/8" | 3-3/4" | 11/16" | 0.083" | 5/16" | 3" | 11/32" |
| PF206G | 1-1/16" to 1-1/4" | 2-13/16" | 4-7/16" | 3/4" | 0.104" | 3/8" | 3-9/16" | 13/32" |
| PF207G | 1-1/4" to 1-7/16" | 3-3/16" | 4-13/16" | 7/8" | 0.134" | 3/8" | 3-15/16" | 13/32" |
S
BPFT200 3-bolt stamped steel triangle flange bearings are designed for light-duty applications and utilize two set screws for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SBPFT200 bearing sizes.
SBPFT200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (h) | (s) | (c) | (g) | (b) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPFT201-8 | 1/2" | 2-23/32" | 2-33/64" | 1-3/16" | 9/32" | 9/16" | 5/64" | 13/16" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB201-8 | PFT203 | 0.57 |
| SBPFT202-10 | 5/8" | 2-23/32" | 2-33/64" | 1-3/16" | 9/32" | 9/16" | 5/64" | 13/16" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB202-10 | PFT203 | 0.57 |
| SBPFT204 | 20mm | 2-63/64" | 2-51/64" | 1-19/64" | 11/32" | 5/8" | 3/32" | 1-1/16" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204 | PFT204 | 0.59 |
| SBPFT204-12 | 3/4" | 2-63/64" | 2-51/64" | 1-19/64" | 11/32" | 5/8" | 3/32" | 1-1/16" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204-12 | PFT204 | 0.59 |
| SBPFT205 | 25mm | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205 | PFT205 | 0.66 |
| SBPFT205-14 | 7/8" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-14 | PFT205 | 0.66 |
| SBPFT205-15 | 15/16" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-15 | PFT205 | 0.66 |
| SBPFT205-16 | 1" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-16 | PFT205 | 0.66 |
| SBPFT206 | 30mm | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206 | PFT206 | 0.88 |
| SBPFT206-17 | 1-1/16" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-17 | PFT206 | 0.88 |
| SBPFT206-18 | 1-1/8 | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-18 | PFT206 | 0.88 |
| SBPFT206-19 | 1-3/16" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-19 | PFT206 | 0.88 |
| SBPFT206-20 | 1-1/4" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-20 | PFT206 | 0.88 |
| SBPFT207 | 35mm | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207 | PFT207 | 1.54 |
| SBPFT207-20 | 1-1/4" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-20 | PFT207 | 1.54 |
| SBPFT207-21 | 1-5/16" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-21 | PFT207 | 1.54 |
| SBPFT207-22 | 1-3/8" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-22 | PFT207 | 1.54 |
| SBPFT207-23 | 1-7/16" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-23 | PFT207 | 1.54 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (D) +/-0.005" | (E) | (F) | (G) | (H) | Min. Frame Opening |
|---|---|---|---|---|---|---|---|---|---|---|
| PFT203 | 1/2" to 5/8" | 2-23/32" | 1-1/8" | 13/16" | 9/32" | 2-1/2" | 9/32' | 0.075" | 40mm | 1-15/16" |
| PFT204 | 3/4" | 3" | 1-5/16" | 1-1/16" | 11/32" | 2-13/16" | 5/16" | 0.083" | 47mm | 2-3/16" |
| PFT205 | 7/8" to 1" | 3-1/8" | 1-3/8" | 1-3/32" | 11/32" | 3" | 11/32" | 0.083" | 52mm | 2-3/8" |
| PFT206 | 1-1/16" to 1-1/4" | 3-11/16" | 1-1/2" | 1" | 13/32" | 3-9/16" | 11/32" | 0.104" | 62mm | 2-13/16" |
| PFT207 | 1-1/4" to 1-7/16" | 4-5/32" | 1-3/4" | 1-17/64" | 13/32" | 3-15/16" | 3/8" | 0.104" | 72mm | 3-3/16" |
SAPFT200 3-bolt stamped steel triangle flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SAPFT200 bearing sizes.
SAPFT200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (h) | (s) | (c) | (g) | (b) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPFT201-8 | 1/2" | 2-33/32" | 2-33/64" | 1-3/16" | 9/32" | 9/16" | 5/64" | 13/16" | 1-59/64" | 1.126" | 0.236" | 1-1/8" | 1/4" | SA201-8 | PFT203 | 0.57 |
| SAPFT202-10 | 5/8" | 2-33/32" | 2-33/64" | 1-3/16" | 9/32" | 9/16" | 5/64" | 13/16" | 1-59/64" | 1.126" | 0.236" | 1-1/8" | 1/4" | SA202-10 | PFT203 | 0.57 |
| SAPFT204 | 20mm | 2-63/64" | 2-51/64" | 1-19/64" | 11/32" | 5/8" | 3/32" | 1-1/16" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204 | PFT204 | 0.59 |
| SAPFT204-12 | 3/4" | 2-63/64" | 2-51/64" | 1-19/64" | 11/32" | 5/8" | 3/32" | 1-1/16" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204-12 | PFT204 | 0.59 |
| SAPFT205 | 25mm | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205 | PFT205 | 0.66 |
| SAPFT205-14 | 7/8" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-14 | PFT205 | 0.66 |
| SAPFT205-15 | 15/16" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-15 | PFT205 | 0.66 |
| SAPFT205-16 | 1" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-16 | PFT205 | 0.66 |
| SAPFT206 | 30mm | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206 | PFT206 | 0.88 |
| SAPFT206-17 | 1-1/16" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-17 | PFT206 | 0.88 |
| SAPFT206-18 | 1-1/8" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-18 | PFT206 | 0.88 |
| SAPFT206-19 | 1-3/16" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-19 | PFT206 | 0.88 |
| SAPFT206-20 | 1-1/4" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-20 | PFT206 | 0.88 |
| SAPFT207 | 35mm | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207 | PFT207 | 1.54 |
| SAPFT207-20 | 1-1/4" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-20 | PFT207 | 1.54 |
| SAPFT207-21 | 1-5/16" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-21 | PFT207 | 1.54 |
| SAPFT207-22 | 1-3/8" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-22 | PFT207 | 1.54 |
| SAPFT207-23 | 1-7/16" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-23 | PFT207 | 1.54 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (D) +/-0.005" | (E) | (F) | (G) | (H) | Min. Frame Opening |
|---|---|---|---|---|---|---|---|---|---|---|
| PFT203 | 1/2" to 5/8" | 2-23/32" | 1-1/8" | 13/16" | 9/32" | 2-1/2" | 9/32' | 0.075" | 40mm | 1-15/16" |
| PFT204 | 3/4" | 3" | 1-5/16" | 1-1/16" | 11/32" | 2-13/16" | 5/16" | 0.083" | 47mm | 2-3/16" |
| PFT205 | 7/8" to 1" | 3-1/8" | 1-3/8" | 1-3/32" | 11/32" | 3" | 11/32" | 0.083" | 52mm | 2-3/8" |
| PFT206 | 1-1/16" to 1-1/4" | 3-11/16" | 1-1/2" | 1" | 13/32" | 3-9/16" | 11/32" | 0.104" | 62mm | 2-13/16" |
| PFT207 | 1-1/4" to 1-7/16" | 4-5/32" | 1-3/4" | 1-17/64" | 13/32" | 3-15/16" | 3/8" | 0.104" | 72mm | 3-3/16" |
4-Bolt Stamped Steel Bearings
4-bolt stamped steel flange bearings are designed for light-duty industrial and agricultural applications. Our high-quality zinc plated housings and performance insert bearings made to C3 precision standards create a durable and high-quality stamped steel flange bearing. Having four mounting holes for securing into an application is beneficial for added holding power and stabilization. The below charts show our standard four-bolt stamped steel bearings, for additional information or to get a quote contact our customer support and we will be happy to assist you!
SBPF200 four-bolt stamped steel flange bearings are designed for light-duty applications and utilize two set screws for securing onto a shaft. Their bore size ranges from 40mm to 2"; the below size chart shows standard SBPF200 bearing sizes.
SBPF200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPF208 | 40mm | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.339" | 0.354" | 1/2" | SB208 | PF208 | 2.20 |
| SBPF208-24 | 1-1/2" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.339" | 0.354" | 1/2" | SB208-24 | PF208 | 2.20 |
| SBPF208-25 | 1-9/16" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.339" | 0.354" | 1/2" | SB208-25 | PF208 | 2.20 |
| SBPF209 | 45mm | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.625" | 0.375" | 1/2" | SB209 | PF209 | 3.00 |
| SBPF209-26 | 1-1/2" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.625" | 0.375" | 1/2" | SB209-26 | PF209 | 3.00 |
| SBPF209-27 | 1-9/16" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.625" | 0.375" | 1/2" | SB209-27 | PF209 | 3.00 |
| SBPF209-28 | 1-3/4" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.625" | 0.375" | 1/2" | SB209-28 | PF209 | 3.00 |
| SBPF210 | 50mm | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.391" | 1/2" | SB210 | PF210 | 3.25 |
| SBPF210-30 | 1-7/8" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.391" | 1/2" | SB210-30 | PF210 | 3.25 |
| SBPF210-31 | 1-15/16" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.391" | 1/2" | SB210-31 | PF210 | 3.25 |
| SBPF210-32 | 2" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.391" | 1/2" | SB210-32 | PF210 | 3.25 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width |
|---|---|---|---|---|---|---|---|---|
| PF208 | 1-1/2" to 1-9/16" | 3-9/16" | 5-13/16" | 13/16" | 0.134" | 1/2" | 4-11/16" | 17/32" |
| PF209 | 1-5/8" to 1-3/4" | 3-13/16" | 5-7/8" | 7/8" | 0.134" | 1/2" | 4-3/4" | 17/32" |
| PF210 | 1-13/16" to 2" | 4" | 6-1/8" | 7/8" | 0.149" | 1/2" | 5" | 17/32" |
| PF211 | 2" to 2-3/16" | 4-7/16" | 6-9/16" | 15/16" | 0.149" | 1/2" | 5-7/16" | 17/32" |
SAPF200 four-bolt stamped steel flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. Their bore size ranges from 40mm to 2"; the below size chart shows standard SAPF200 bearing sizes.
SAPF200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us
.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPF208 | 40mm | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208 | PF208 | 2.86 |
| SAPF208-24 | 1-1/2" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208-24 | PF208 | 2.86 |
| SAPF208-25 |
1-9/16"
|
5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208-25 | PF208 | 2.86 |
| SAPF209 | 45mm | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209 | PF209 | 3.74 |
| SAPF209-26 | 1-5/8" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-26 | PF209 | 3.74 |
| SAPF209-27 | 1-11/16" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-27 | PF209 | 3.74 |
| SAPF209-28 | 1-3/4" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-28 | PF209 | 3.74 |
| SAPF210 | 50mm | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210 | PF210 | 4.40 |
| SAPF210-30 | 1-7/8" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-30 | PF210 | 4.40 |
| SAPF210-31 | 1-15/16" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-31 | PF210 | 4.40 |
| SAPF210-32 | 2" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-32 | PF210 | 4.40 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width |
|---|---|---|---|---|---|---|---|---|
| PF208 | 1-1/2" to 1-9/16" | 3-9/16" | 5-13/16" | 13/16" | 0.134" | 1/2" | 4-11/16" | 17/32" |
| PF209 | 1-5/8" to 1-3/4" | 3-13/16" | 5-7/8" | 7/8" | 0.134" | 1/2" | 4-3/4" | 17/32" |
| PF210 | 1-13/16" to 2" | 4" | 6-1/8" | 7/8" | 0.149" | 1/2" | 5" | 17/32" |
| PF211 | 2" to 2-3/16" | 4-7/16" | 6-9/16" | 15/16" | 0.149" | 1/2" | 5-7/16" | 17/32" |
SBPF200G four-bolt stamped steel flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. These bearings also have a grease zerk for re-lubing the bearing. Their bore size ranges from 40mm to 2-3/16"; the below size chart shows standard SBPF200G bearing sizes.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPF208G | 40mm | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.344" | 0.354" | 1/2" | SB208 | PF208G | 2.50 |
| SBPF208-24G | 1-1/2" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.344" | 0.354" | 1/2" | SB208-24 | PF208G | 2.50 |
| SBPF208-25G | 1-9/16" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.344" | 0.354" | 1/2" | SB208-25 | PF208G | 2.50 |
| SBPF209G | 45mm | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.625" | 0.374" | 1/2" | SB209 | PF209G | 3.05 |
| SBPF209-26G | 1-5/8" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.625" | 0.374" | 1/2" | SB209-26 | PF209G | 3.05 |
| SBPF209-27G | 1-11/16" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.625" | 0.374" | 1/2" | SB209-27 | PF209G | 3.05 |
| SBPF209-28G | 1-3/4" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.625" | 0.374" | 1/2" | SB209-28 | PF209G | 3.05 |
| SBPF210G | 50mm | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.394" | 1/2" | SB210 | PF210G | 3.30 |
| SBPF210-30G | 1-7/8" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.394" | 1/2" | SB210-30 | PF210G | 3.30 |
| SBPF210-31G | 1-15/16" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.394" | 1/2" | SB210-31 | PF210G | 3.30 |
| SBPF210-32G | 2" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.394" | 1/2" | SB210-32 | PF210G | 3.30 |
| SBPF211G | 55mm | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.750" | 0.469" | 1/2" | SB211 | PF211G | 4.40 |
| SBPF211-32G | 2" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.750" | 0.469" | 1/2" | SB211-32 | PF211G | 4.40 |
| SBPF211-34G | 2-1/8" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.750" | 0.469" | 1/2" | SB211-34 | PF211G | 4.40 |
| SBPF211-35G | 2-3/16" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.750" | 0.469" | 1/2" | SB211-35 | PF211G | 4.40 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width (E) |
|---|---|---|---|---|---|---|---|---|
| PF208G | 1-1/2" to 1-9/16" | 3-9/16" | 5-13/16" | 1-1/4" | 0.149" | 1/2" | 4-11/16" | 17/32" |
| PF209G | 1-5/8" to 1-3/4" | 3-13/16" | 5-7/8" | 1-1/4" | 0.149" | 1/2" | 4-3/4" | 17/32" |
| PF210G | 1-13/16" to 1-15/16" | 4" | 6-1/8" | 1" | 0.164" | 1/2" | 5" | 17/32" |
| PF211G | 2" to 2-3/16" | 4-7/16" | 6-9/16" | 1-5/16" | 0.164" | 1/2" | 5-7/16" | 17/32" |
SA
PF200G four-bolt stamped steel flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. These bearings also have a grease zerk for re-lubing the bearing. Their bore size ranges from 40mm to 2-3/16"; the below size chart shows standard SAPF200G bearing sizes.
SBPF200G Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPF208G | 40mm | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208 | PF208G | 2.85 |
| SAPF208-24G | 1-1/2" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208-24 | PF208G | 2.85 |
| SAPF208-25G | 1-9/16" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208-25 | PF208G | 2.85 |
| SAPF209G | 45mm | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209 | PF209G | 3.20 |
| SAPF209-26G | 1-5/8" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-26 | PF209G | 3.20 |
| SAPF209-27G | 1-11/16" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-27 | PF209G | 3.20 |
| SAPF209-28G | 1-3/4" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-28 | PF209G | 3.20 |
| SAPF210G | 50mm | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210 | PF210G | 3.50 |
| SAPF210-30G | 1-7/8" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-30 | PF210G | 3.50 |
| SAPF210-31G | 1-15/16" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-31 | PF210G | 3.50 |
| SAPF210-32G | 2" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-32 | PF210G | 3.50 |
| SAPF211G | 55mm | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.720" | 0.469" | 3" | 1/2" | SA211 | PF211G | 4.70 |
| SAPF211-32G | 2" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.720" | 0.469" | 3" | 1/2" | SA211-32 | PF211G | 4.70 |
| SAPF211-34G | 2-1/8" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.720" | 0.469" | 3" | 1/2" | SA211-34 | PF211G | 4.70 |
| SAPF211-35G | 2-3/16" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.720" | 0.469" | 3" | 1/2" | SA211-35 | PF211G | 4.70 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width (E) |
|---|---|---|---|---|---|---|---|---|
| PF208G | 1-1/2" to 1-9/16" | 3-9/16" | 5-13/16" | 1-1/4" | 0.149" | 1/2" | 4-11/16" | 17/32" |
| PF209G | 1-5/8" to 1-3/4" | 3-13/16" | 5-7/8" | 1-1/4" | 0.149" | 1/2" | 4-3/4" | 17/32" |
| PF210G | 1-13/16" to 1-15/16" | 4" | 6-1/8" | 1" | 0.164" | 1/2" | 5" | 17/32" |
| PF211G | 2" to 2-3/16" | 4-7/16" | 6-9/16" | 1-5/16" | 0.164" | 1/2" | 5-7/16" | 17/32" |
Frequently Asked Questions
-
If your order is less than $300, no problem! Please give us a call at 407-347-3519 or email Sales@usarollerchain.com, and we will be happy to assist you!
-
USA Roller Chain utilizes an extensive network of vendors and warehouses to ensure you get your items quickly! Our primary roller chain warehouse is located in Clermont, FL, but we have warehouses located all across the United States. Your order will be shipped from the closest warehouse to you that has your requested product in stock. This speeds up transit times and saves you money on shipping! If you have any questions about where an item will ship from, please CONTACT US
-
In-stock items are typically shipped out in 1-3 business days.Made-to-order item lead times vary from 1-2 days up to 14-20+ weeks, depending on the product. If you need your items urgently, please let us know, and we will do our best to meet your required delivery date! If you have any questions, please CONTACT US
-
If you are having an issue with your order, please CONTACT US as soon as possible so we can resolve it for you.
Most in-stock items can be returned within 30 days of the shipment date. MTO or Custom orders are not eligible for a return or refund. For a detailed explanation of our return policies, please click here.
-
Absolutely! We may be called "USA Roller Chain", but we ship worldwide! Please CONTACT US for Export/International quotes or orders.
