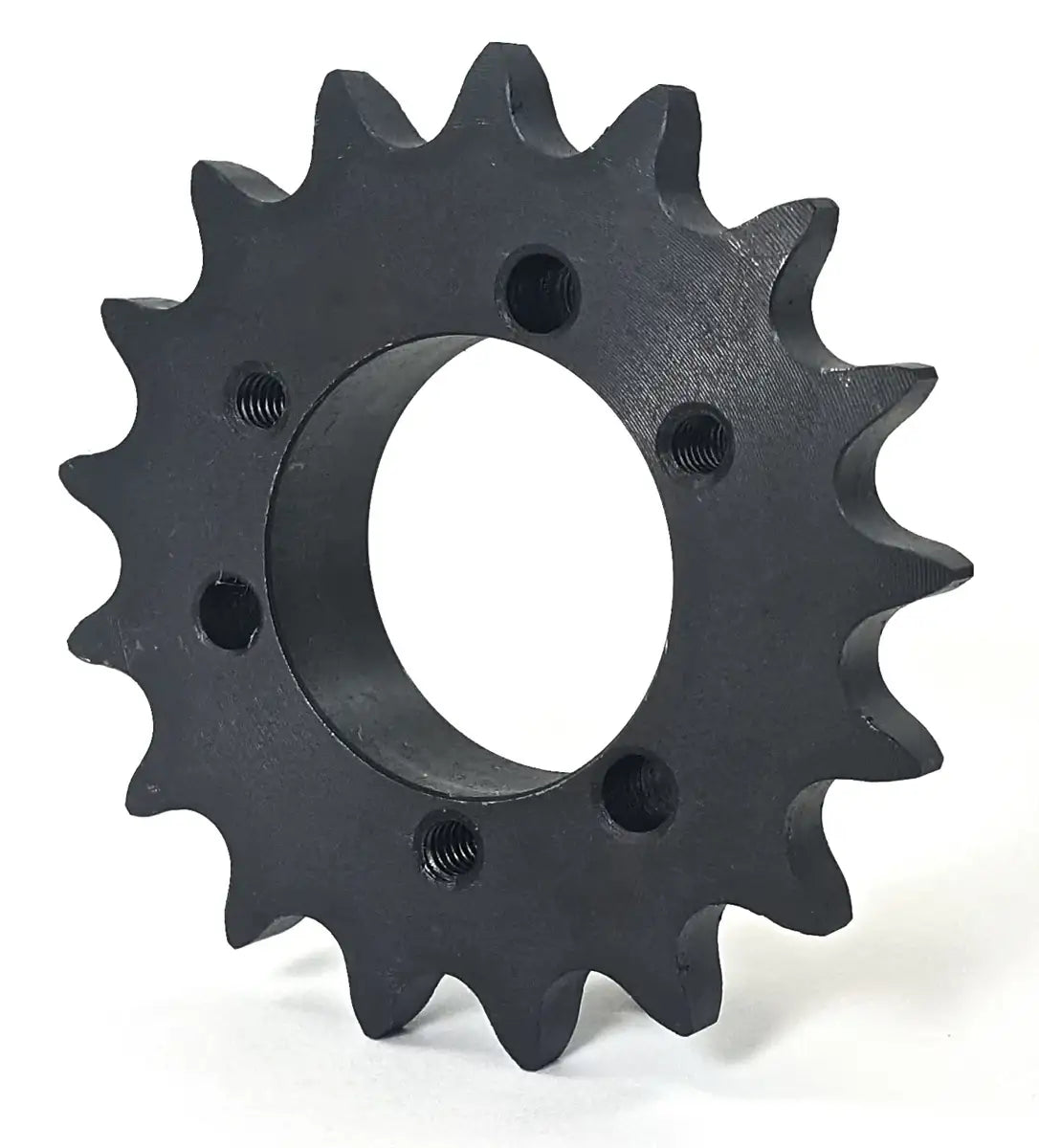

50JA12 Sprocket (QD Type)

50JA12 Sprocket QD Type 50JA12 Sprocket
50JA12 Sprocket



Our Price: $13.12
Note: Contact Us For Large Quantity Request


Availability: In-Stock
Product Code: 50JA12-SPROCKET
Qty:

Description Technical Specs

This 50JA12 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a JA bushing. Sprockets that have hardened teeth last longer, perform better, and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early corrosion. 50JA12 sprockets are manufactured to accept a JA type QD bushing which, we also stock with a wide range of bore sizes. Additionally we offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

50JA12 Sprocket Dimensions


  • Sprocket Size: 50JA12
  • Tooth Count: 12
  • Bushing Size: JA
  • Outside Diameter: 2.710"
  • Pitch Diameter: 2.415"
  • Dimension (L1): 1-1/8"
  • Dimension (L2): 1-1/8"
  • Dimension (C): 2-1/16"
  • Dimension (Y): 21/32"
  • Dimension (G): 9/32"
  • Dimension (X): 5/8"
  • Dimension (T): 0.343"
  • Bushing Weight: 0.9 LBS
  • Sprocket Weight: 0.34 LBS

Phone: (407) 347-3519
Email:
sales@usarollerchain.com

About Us
Features
    • Premium Quality Sprocket
    • Manufactured Using High-Quality Steel
    • Fully Meets ANSI Standards
    • Black Oxide Coated
    • Interchangeable With Other Manufactures
    • Extremely Durable and High-Performance
